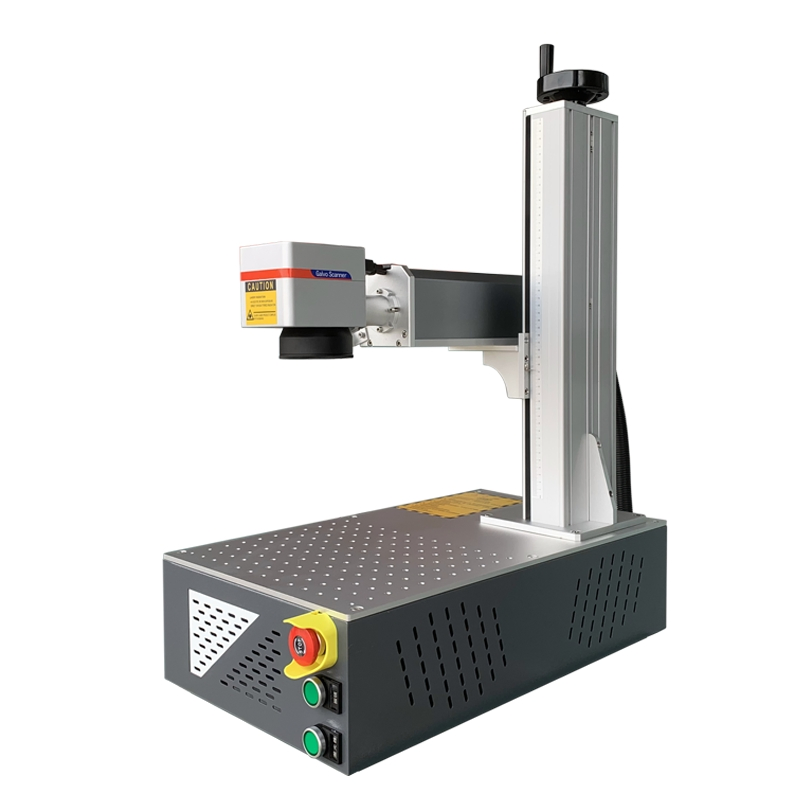

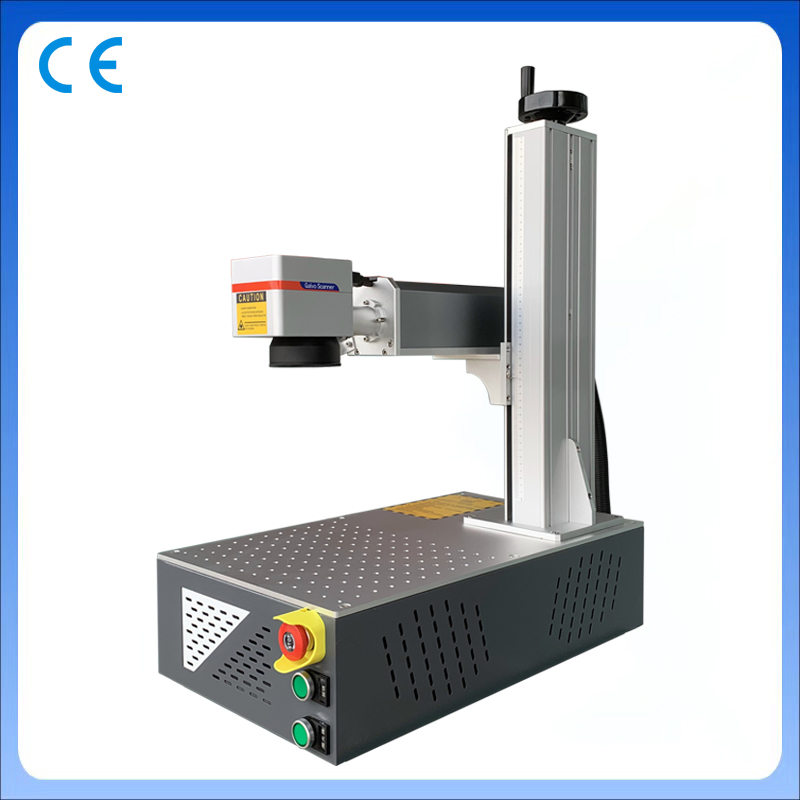

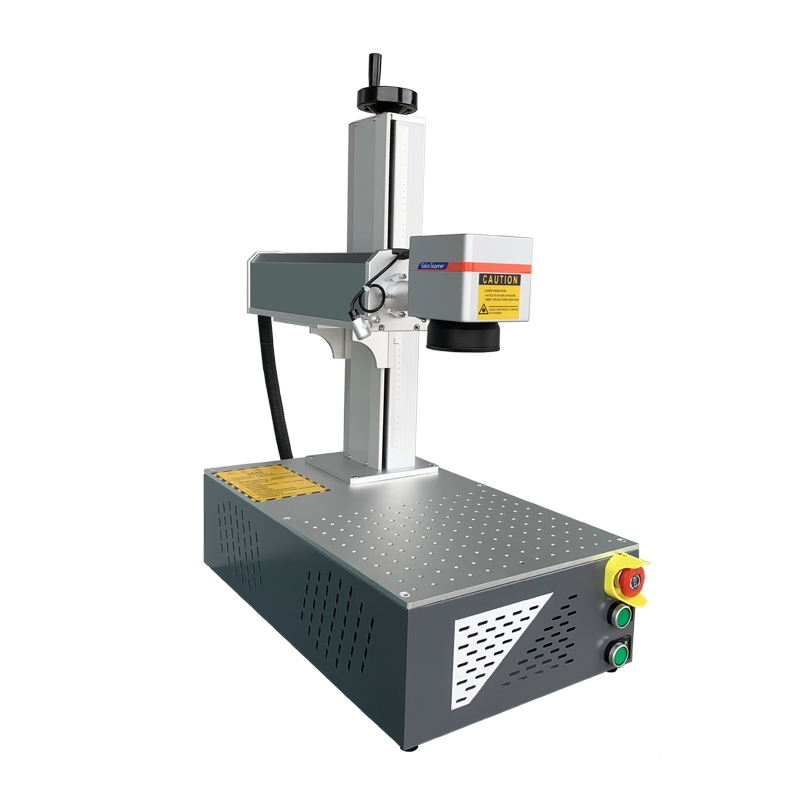

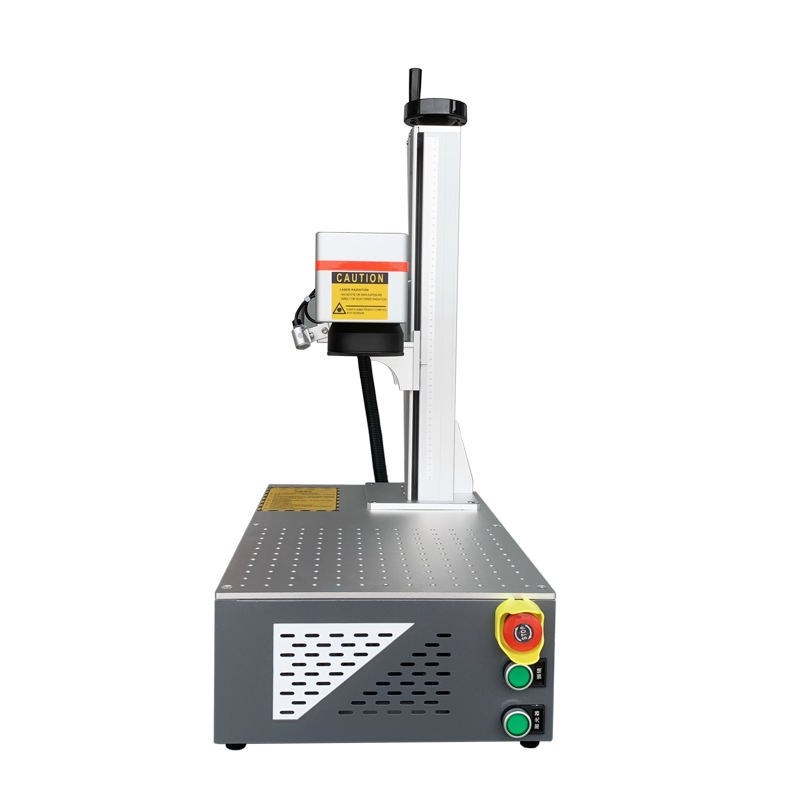

Ciso Tool
Ciso Tool
| Model NO. | SR-P |
| Laser Visibility | Visible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Continuous Wave Laser |
| Laser Wavelength | Fiber Laser |
| Laser Classification | Semiconductor Laser |
| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Processing Area | 70*70mm, 100*100mm, 200*200wmm, 300*300mm |
| Fiber Power | 20W 30W 50W 100W |
| Laser Source Life Span | 100000 Hours |
| Resetting Positioning Accuracy | 0.01mm |
| Marking Speed | 7000mm/S |
| Compatible Software | Coreldraw/Autocad/Photoshop/Ai |
| Min. Line Width | 0.02mm |
| Position Type | Red DOT Pointer |
| Support Graphic Format | Dxf, Plt, Ai, BMP, JPG, etc. |
| Gross Power | 500-800W |
| Working Voltage | 220V/1pH/50/60Hz |
| Gross Weight | 60kg |
| Origin | China |
| HS Code | 8456110090 |
| Production Capacity | 300sets Per Month |
| Package Size | 54.00cm * 28.00cm * 32.00cm |
| Package Gross Weight | 55.000kg |
| Transport Package | Plywood Case |
Comparing with traditional solid laser marking machine, angle of divergence is only 1/4 of diode pump laser device. It is especially suitable for precision marking.
Photo electric conversion efficiency max is 30%, whole machine power consumption is less than 500w. No consumable ink cost burden and eliminating nozzle cleaning troubles.
Using laser diode as the source of pump with a full sealing light path design. The no-failure operation can reach up to 100 thousand hours.
Processing speed is 5-10 times faster than traditional laser marking machines.
| Parameter | Specification Details |
|---|---|
| Model | SR-P |
| Processing area | 110mm*110mm 160*160mm, 200*200mm, 300*300mm |
| Fiber power | 20W 30W 50W 100W |
| Cooling mode | Air cooling |
| Laser Wavelength | 1064nm |
| Resetting positioning accuracy | ±0.003mm |
| Marking speed | ≤7000mm/s |
| Compatible Software | CorelDraw/AutoCAD/Photoshop/AI … |
| Position Type | Red Dot Pointer |
| Support graphic format | DXF, PLT, AI, BMP, JPG, etc. |
| Working Voltage | 220V/1ph/50/60HZ |

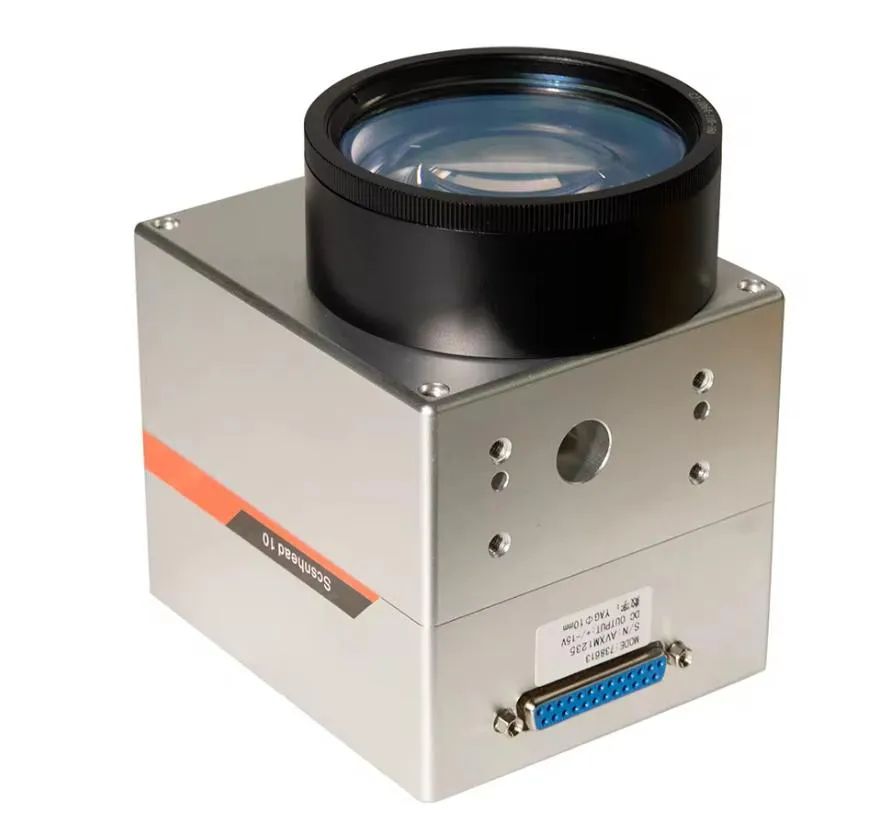

Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s marking speed. Supply different brand and mode, also could make the auto focus type, and the 3D type.

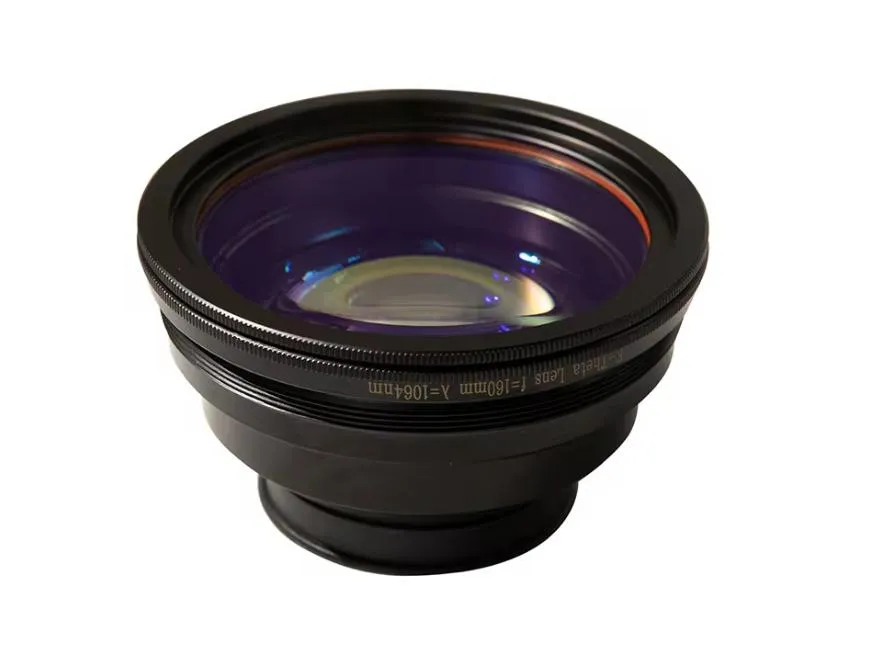

110*110mm, 175*175mm, 200*200mm (standard), 300*300mm different lens available. Same laser power with the smaller lens will have the faster marking speed. Also supply other custom sizes.

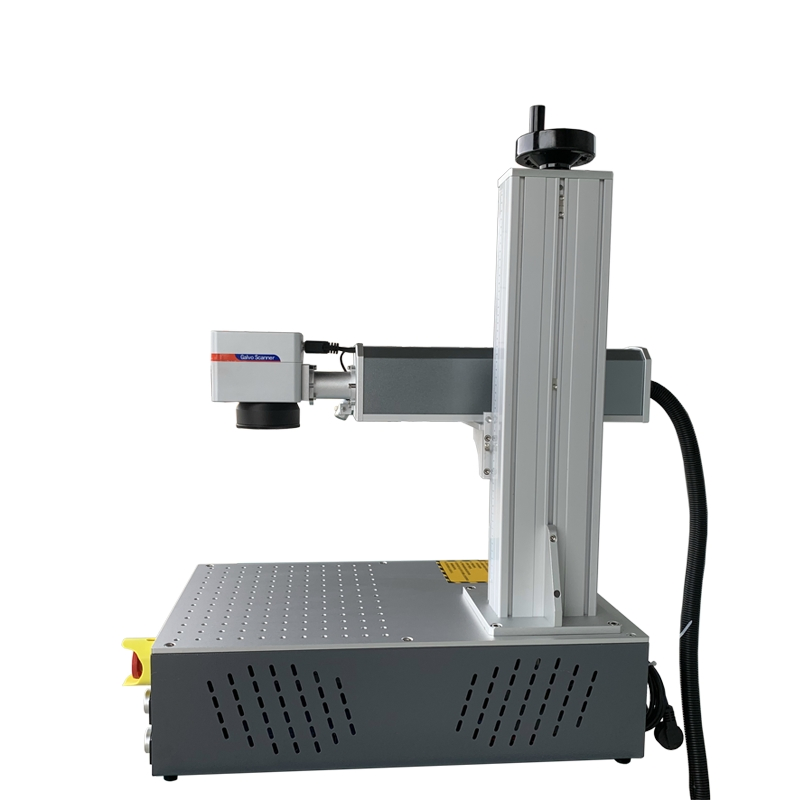

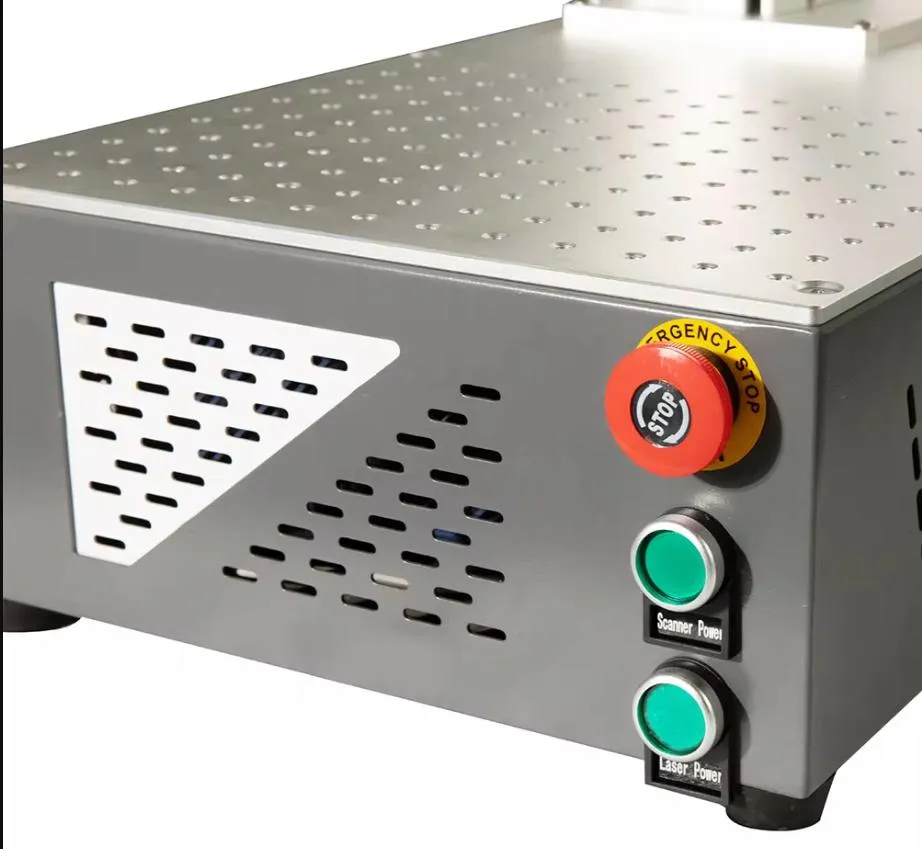

Features emergency stop for operator safety, split power switches for both laser source and scan head. Safe, humanized control system, dustproof and simple to operate.

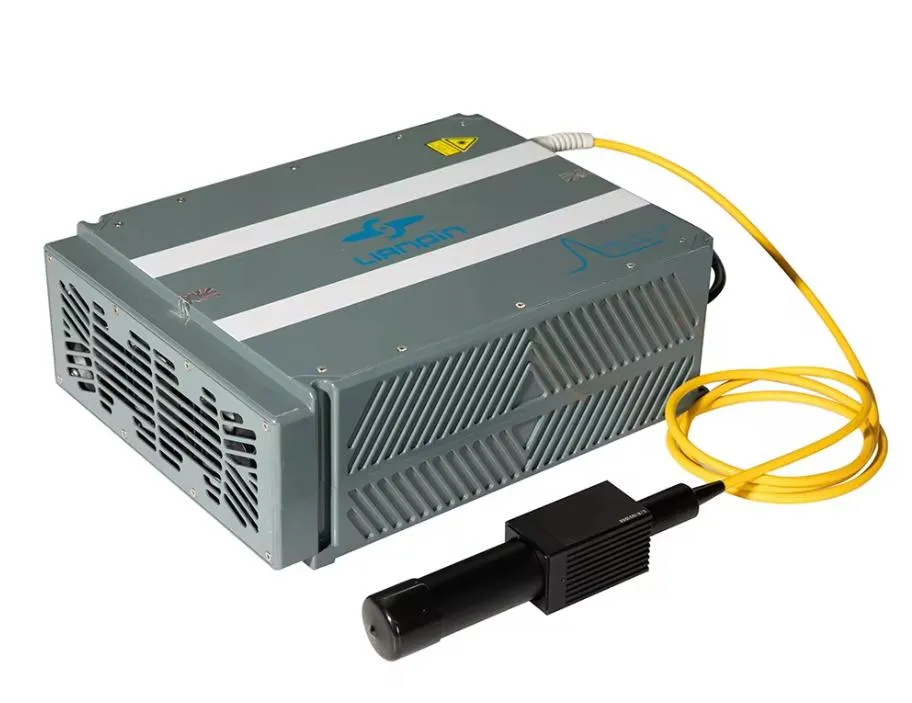

Raycus/MAX/IPG/JPT multiple choice. High power delivers faster marking. CO2, UV, MOPA, and green lasers are also available depending on requirements.
Application Industries: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Application Materials: Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
Package: Plywood case
Delivery time: 3-5 working days
It can process all metals (including gold, silver, copper, alloy, aluminum, steel, stainless steel) and various non-metals such as engineering and hard plastics, PVC pipes, sanitary wares, and electronic components.
The high-performance fiber laser source (Raycus/MAX/IPG/JPT) has an exceptional operational life span of up to 100,000 hours, requiring zero maintenance during operations.
The machine supports a maximum marking speed of up to 7000mm/s. The processing area is adjustable depending on the field lens choice: standard sizes include 110*110mm, 175*175mm, 200*200mm, and 300*300mm.
The marking system is fully compatible with popular design and engineering software, including CorelDraw, AutoCAD, Photoshop, and Adobe Illustrator (AI), supporting formats like DXF, PLT, AI, BMP, and JPG.
A full 2-year warranty is provided for the machine. After-sales services include free user manuals/videos, testing samples, and 7*18 hours of online response from our engineering support team.
The desktop laser marking machine utilizes an efficient Air Cooling system, which eliminates the need for external water chillers and reduces overall maintenance and power requirements.
