Ciso Tool
Ciso Tool
| Model NO. | SR-D |
| Laser Visibility | Invisible |
| Applicable Material | Metal |
| Cooling System | Air Cooling |
| Technical Class | Continuous Wave Laser |
| Laser Wavelength | Fiber Laser |

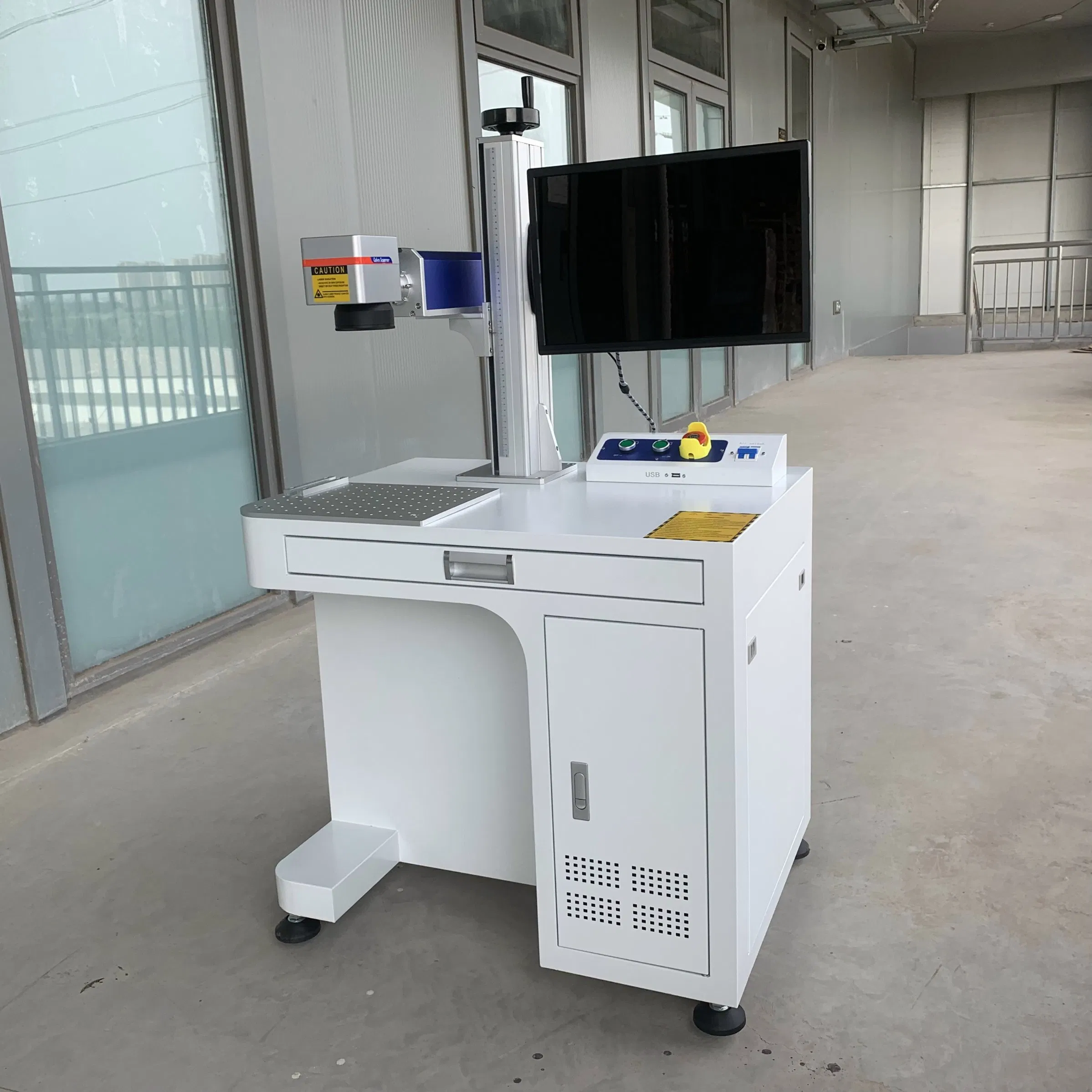

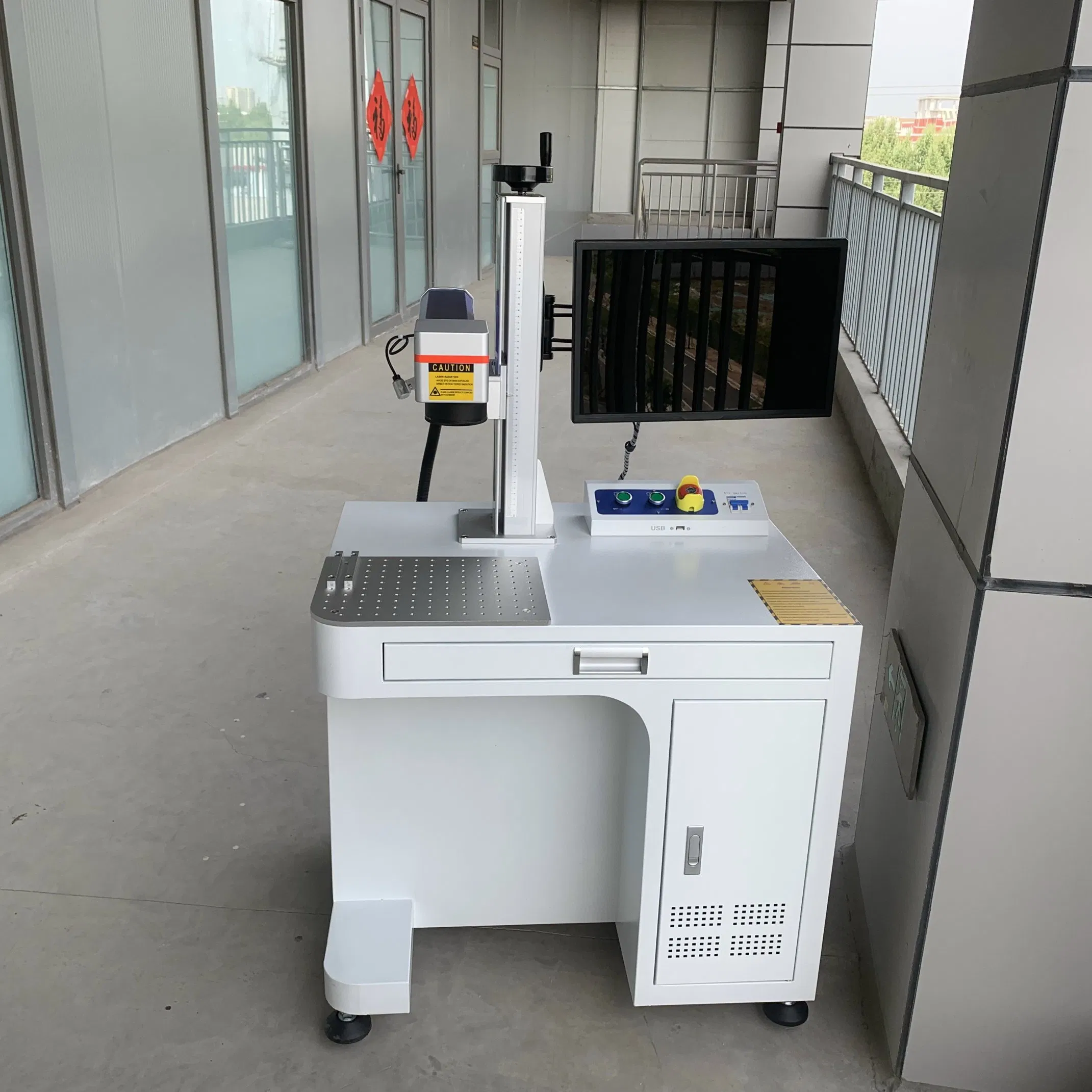

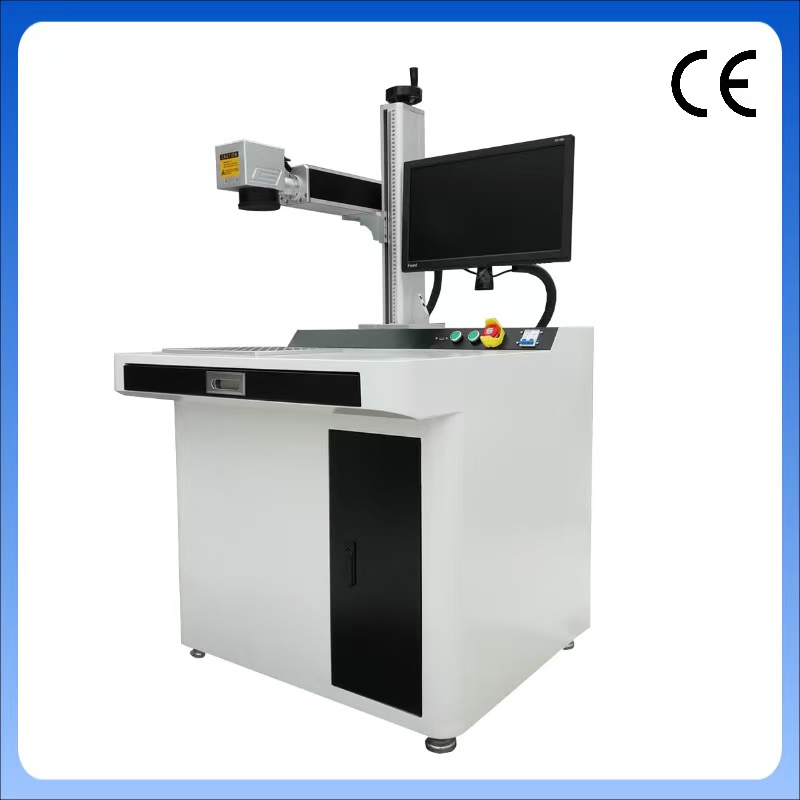

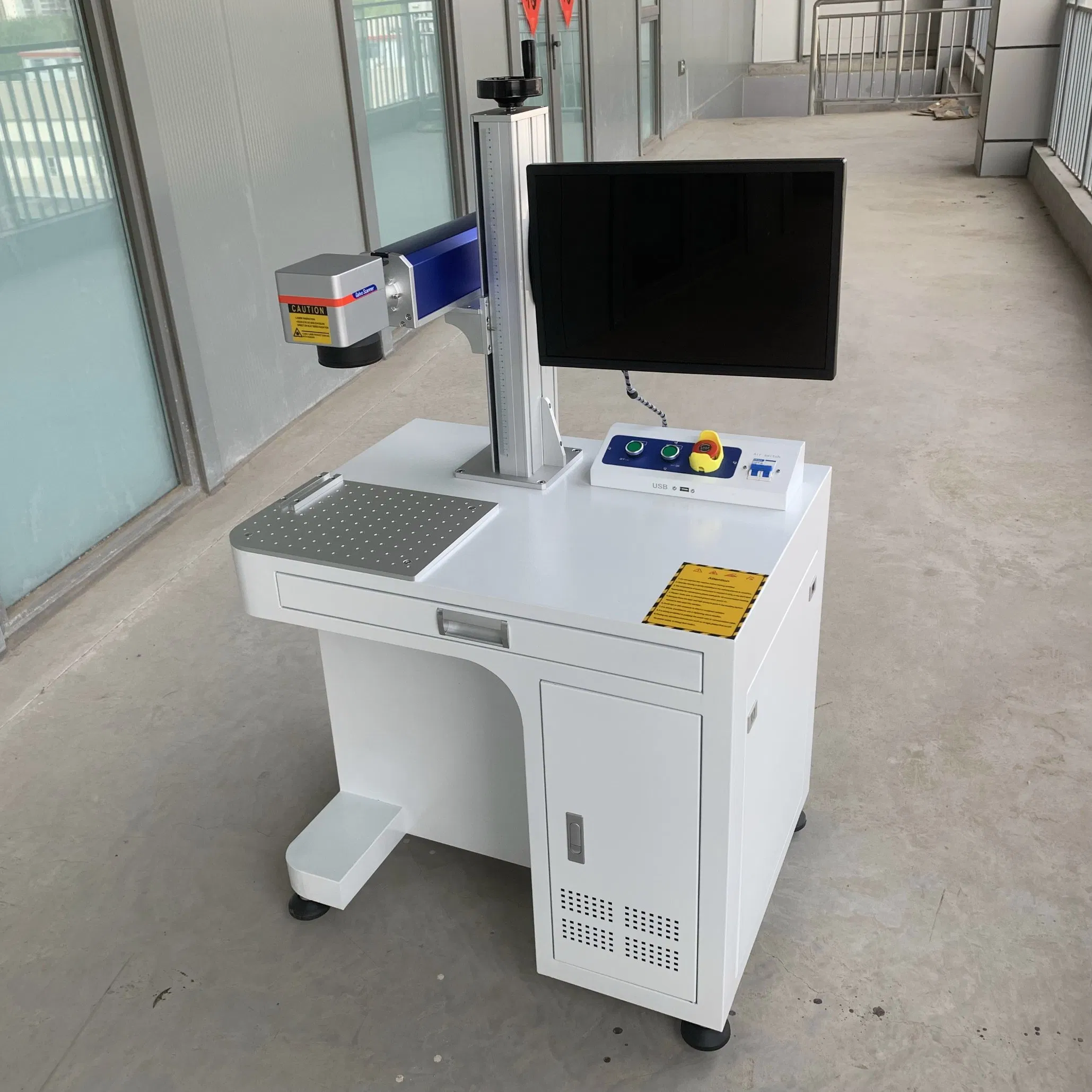

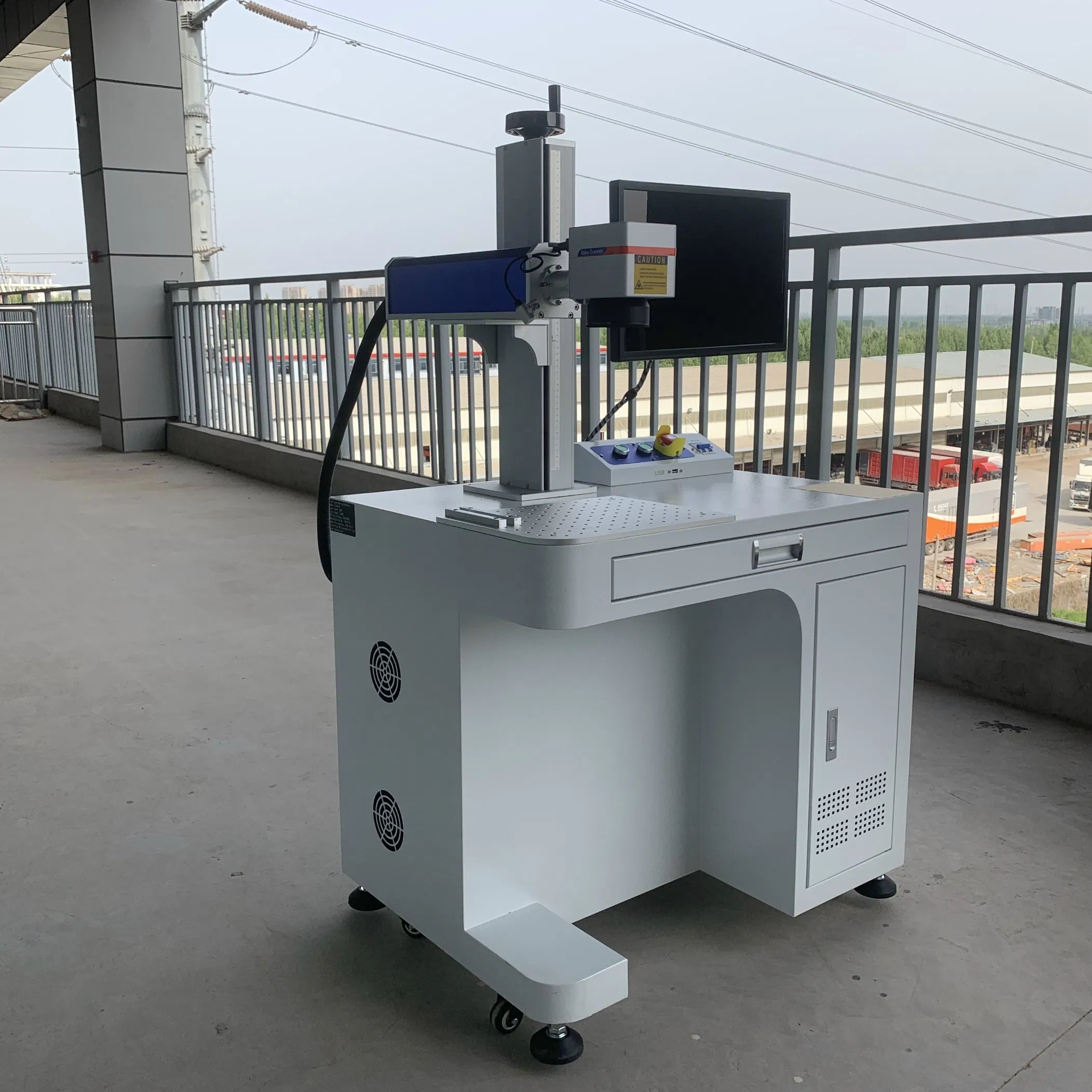

| Type | Optical Fiber Laser Marking Machine |
| Marking Method | Scanning Marking |
| Processing Area | 70*70mm,100*100mm, 200*200mm, 300*300mm |
| Fiber Power | 20W 30W 50W 100W |
| Laser Source Life Span | 100000 Hours |
| Resetting Positioning Accuracy | 0.01mm |
| Marking Speed | 7000mm/S |
| Compatible Software | Coreldraw/Autocad/Photoshop/Ai |
| Min. Line Width | 0.02mm |
| Position Type | Red DOT Pointer |
| Support Graphic Format | Dxf, Plt, Ai, BMP, JPG, etc. |
| Gross Power | 500-800W |
| Working Voltage | 220V/1pH/50/60Hz |
| Gross Weight | 100kg |
| Transport Package | Plywood Case |
| Origin | China |
| HS Code | 8456110090 |
| Production Capacity | 300sets Per Month |
| Package Size | 54.00cm * 28.00cm * 32.00cm |
| Package Gross Weight | 55.000kg |
Compared with traditional solid laser marking machines, the angle of divergence is only 1/4 of a diode pump laser device. Especially suitable for precision marking.
Photoelectric conversion efficiency max is 30%; whole machine power consumption is less than 500W, greatly saving energy costs. No consumable ink cost and no nozzle cleaning hassle.
Using a laser diode as the pump source with a fully sealed light path design, its failure-free operation can reach up to 100,000 hours.
Processing speed is 5-10 times faster than traditional laser marking machines.
| Model | SR-D |
|---|---|
| Processing area | 110mm*110mm, 160*160mm, 200*200mm, 300*300mm |
| Fiber power | 20W 30W 50W 100W |
| Cooling mode | Air cooling |
| Laser Wavelength | 1064nm |
| Resetting positioning accuracy | ±0.003mm |
| Marking speed | ≤7000mm/s |
| Compatible Software | CorelDraw/AutoCAD/Photoshop/AI … |
| Position Type | Red Dot Pointer |
| Support graphic format | DXF, PLT, AI, BMP, JPG, etc. |
| Working Voltage | 220V/1ph/50/60HZ |

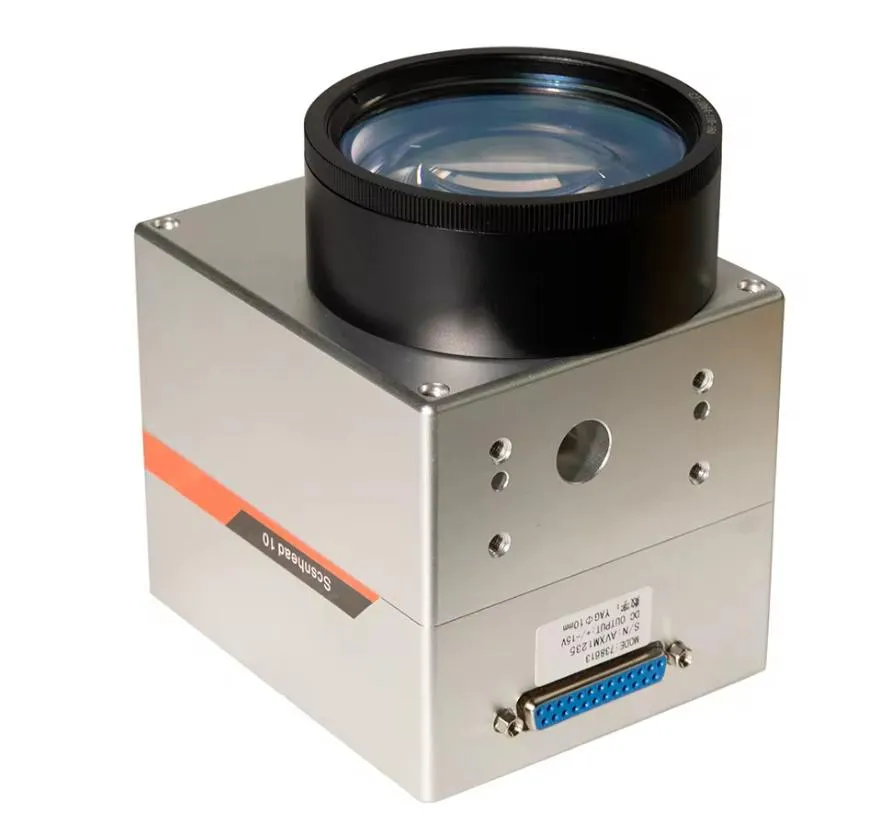

Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s marking speed. Supply different brand and mode, also could make the auto focus type, and the 3D type.

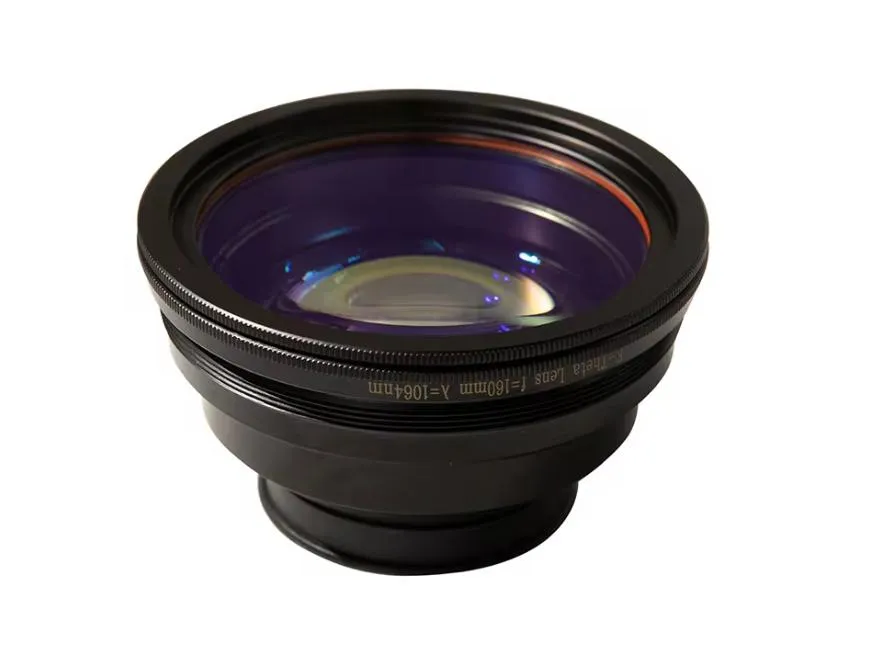

110*110mm, 175*175mm, 200*200mm (standard), 300*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed. Also supply the other size.

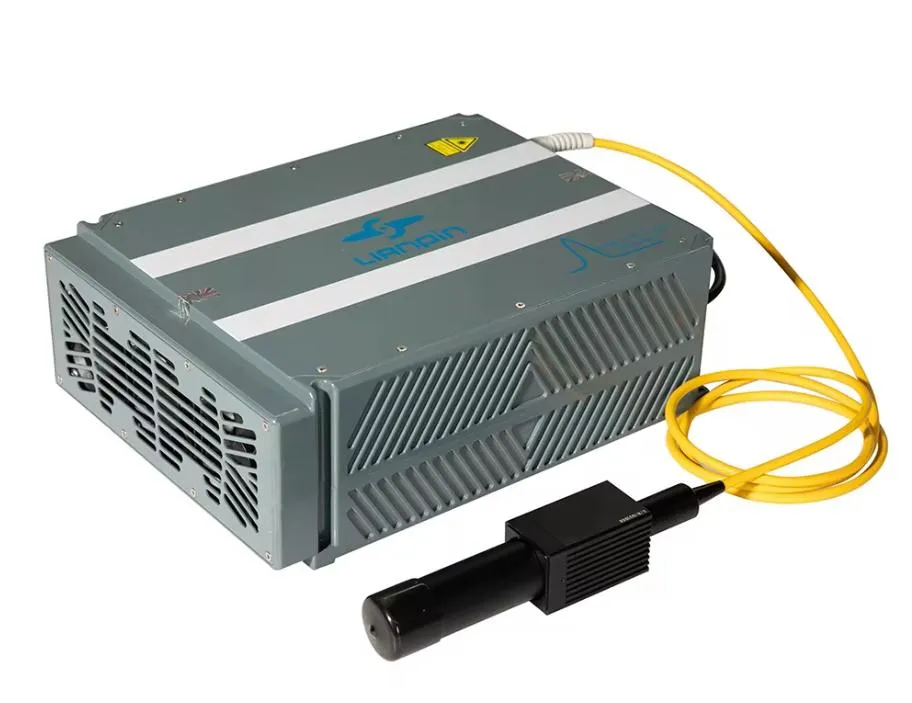

Raycus/MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed. Also supply CO2 laser, UV laser, MOPA laser, green laser, etc.

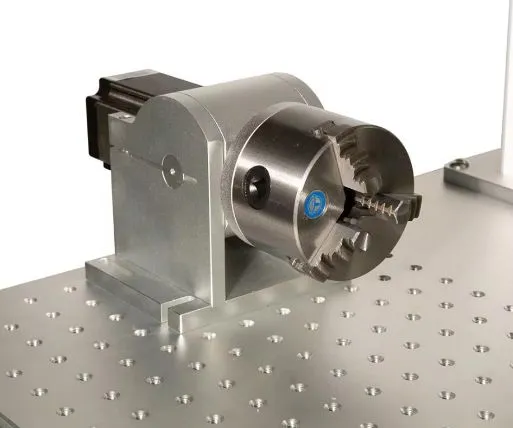

Different diameter rotary options with 50mm, 80mm, 100mm, 150mm and other sizes. Special rotary for ring inside/outside marking, pens, or bulbs are customizable.
All machines come standard with an aluminum work table. Optional tables: 2D working table, 3D working table, cutting work table for jewelry, or customized designs.
Application Industries: Jewellery, Keyboards of cell phone, Auto parts, Electronic components, Electronic appliance, Communication apparatus, sanitary wares, buckles, kitchenware, Sanitary equipment's, Hardware tools, Knife, Glasses, Clock, Cooker, Stainless steel products etc.
Application Materials: Engraving bar codes, decorative map, LOGO, factory number, production date, dial on all Metals ( Gold, silver, copper, alloy, aluminum, steel, stainless steel, name card ), Non-metal ( Plastic: engineering plastic and hard plastic, etc. Used in electronic components integrated circuits, mobile communications, precision instruments, glasses watch and clocks, computer keyboard, accessories, auto parts, plastic buttons, plumbing fittings, sanitary ware, PVC pipe, medical equipment, packaging bottles, etc.)
Package: Plywood case
Delivery time: 3-5 working days
Timely reply: Fast answers on products, price, technology, industry solutions & other aspects.
Free sample service: Any material testing work can be completed at our testing lab.
Timely updates: Once the order is confirmed, we update the machine processing progress every 7 days using videos or photos.
Quality & Package Guarantee: Our team tests the machine continuously for over 72 hours before packaging to ensure optimal condition. Multi-layer packaging protects your unit during transit.
Manuals & Videos: Free user manual and detailed instructional videos are sent once the machine departs the factory.
Fast Response: 7*18H support team and engineer desk are available online for troubleshooting.
Warranty Policy: 2 years warranty covering the whole machine. Any damaged components during this period will be provided with solutions or reasonable spare part pricing.
