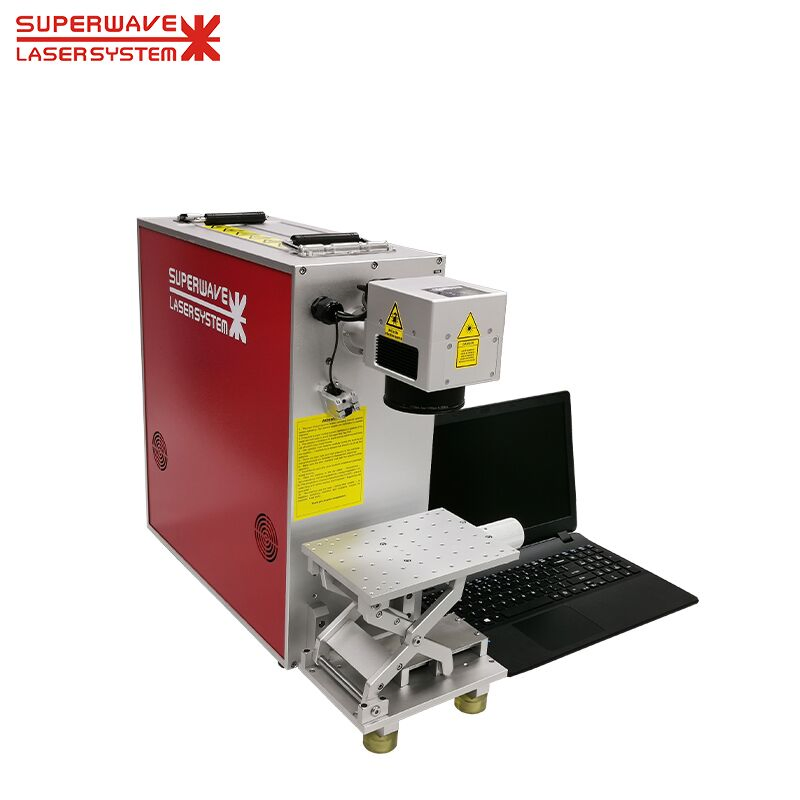

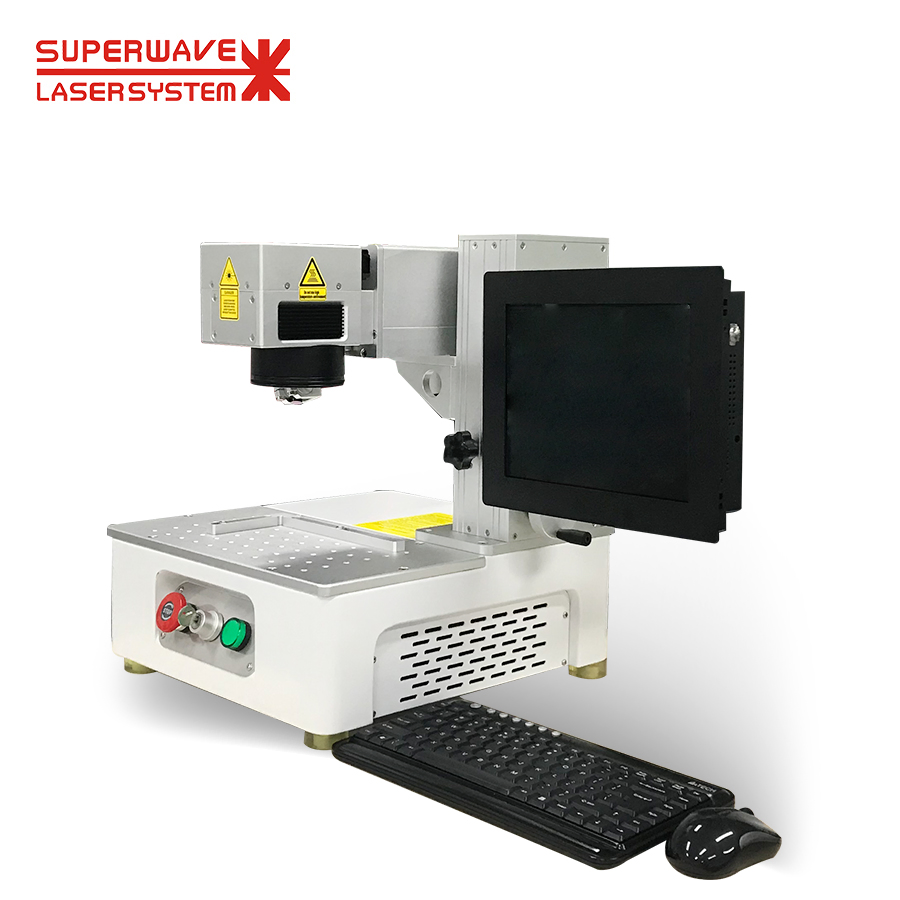

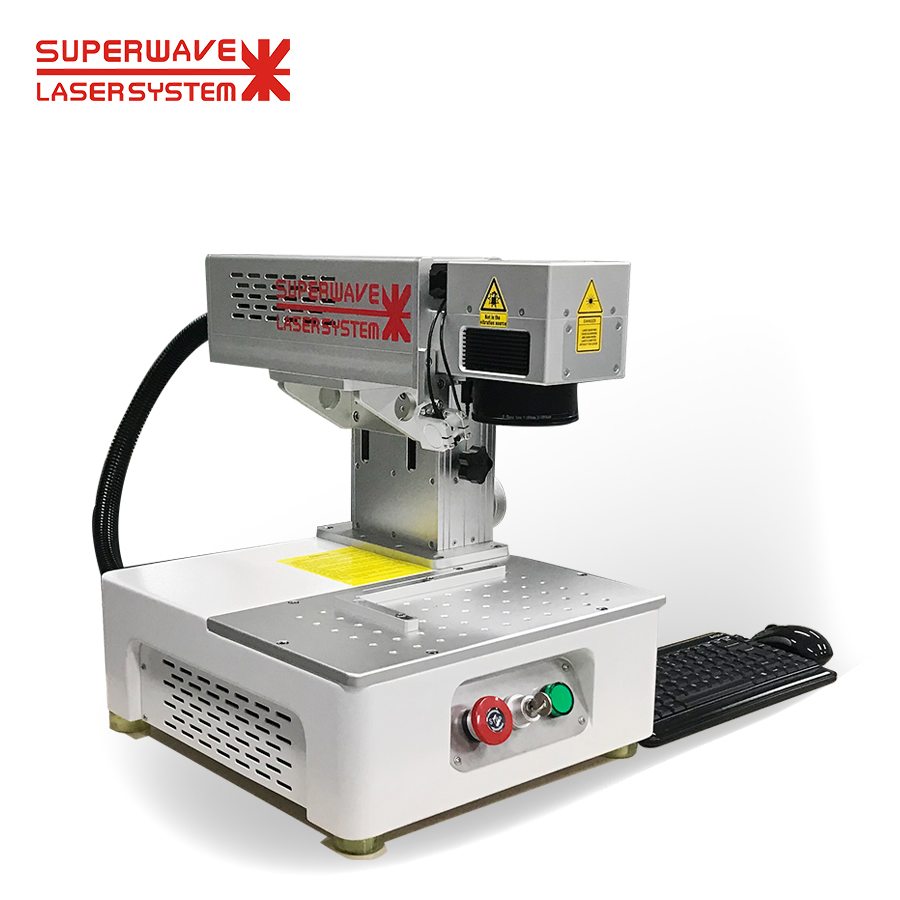

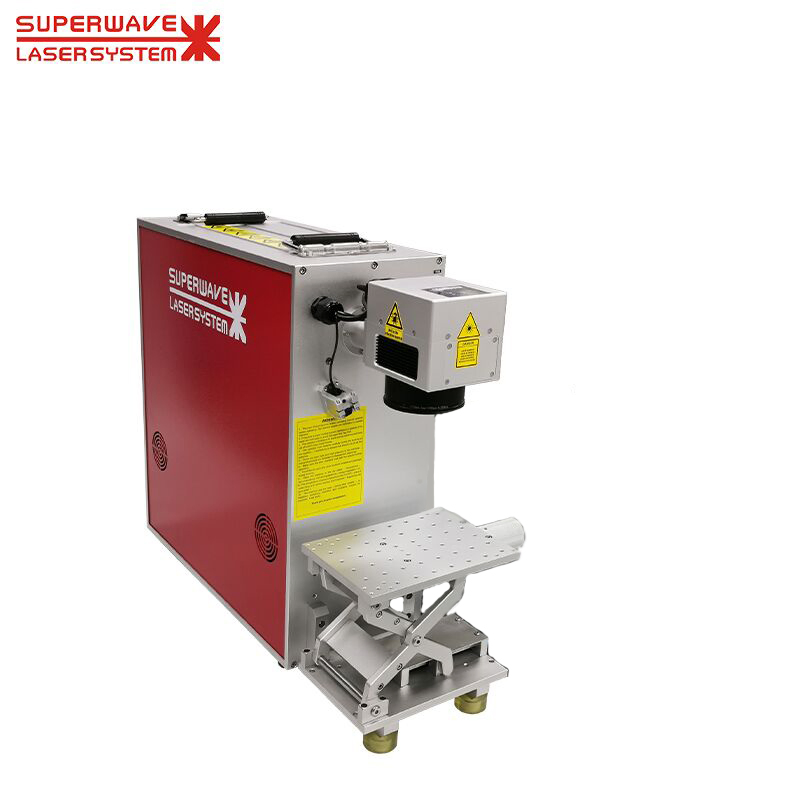

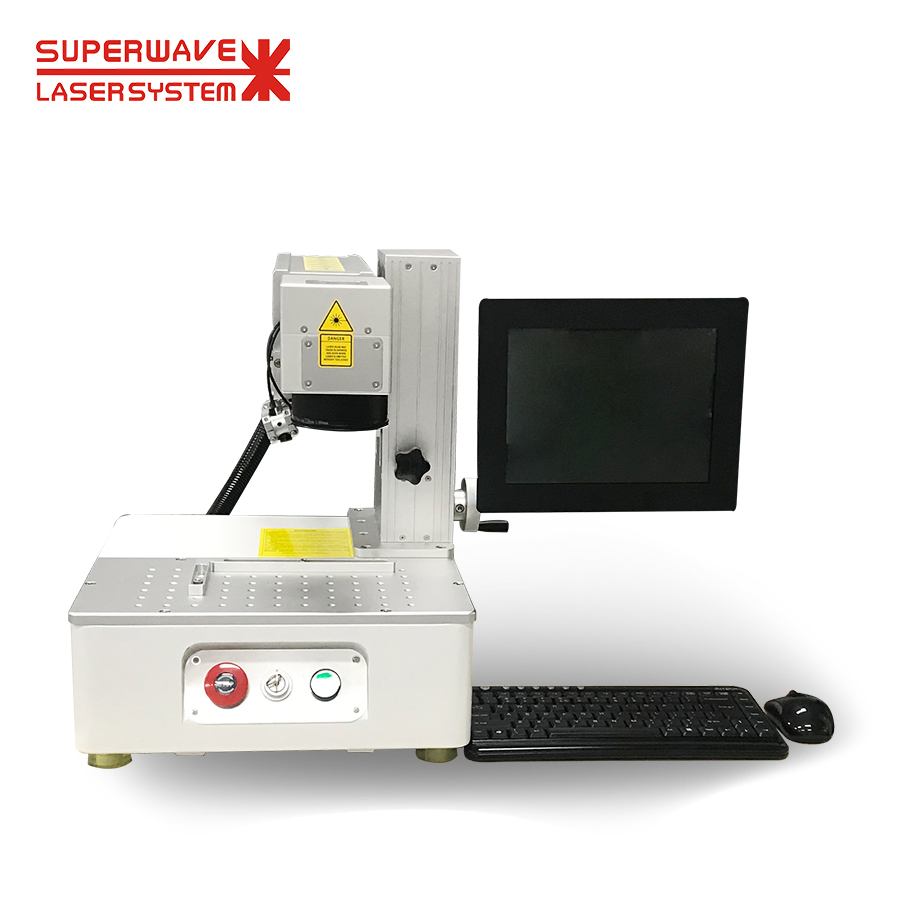

Super Quality Watch Dial Fiber Laser Marking Machine Mini Laser Marker

1 / 5

Super Quality Watch Dial Fiber Laser Marking Machine Mini Laser Marker

Customization:	Available
After-sales Service:	24 Hours Online Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Info.

Model NO.

SW-FLM

Laser Visibility

Visible

Applicable Material

Metal

Cooling System

Air Cooling

Technical Class

Pulse Laser

Laser Wavelength

Fiber Laser

Laser Classification

Solid Laser

Type

Optical Fiber Laser Marking Machine

Marking Method

Mask Pattern Marking

Wavelength

1064nm

Pulse Reputation

20kHz < F < 100kHz

Line Speed

7000mm/S

Minimum Character Size

<0.5mm

Marking Size

100X100mm (50X50mm - 300X300mm Optional)

Power Supply

AC220V/50Hz

Controlling System

Computer

Transport Package

Wooden Case

Specification

20W/30W/50W/100W

HS Code

8456100090

Production Capacity

100 Per Months

Super Quality Watch Dial Fiber Laser Marking Machine Mini Laser Marker

Technical Parameters

Model	SW-FLM20	SW-FLM30	SW-FLM50
Output Power	20W	30W	50W
Laser Wavelength	1064nm	1064nm	1064nm
Beam Quality	M²<1.3	M²<1.5	M²<1.5
Pulse Reputation	1-100KHz	1-100KHz	1-100KHz
Line Speed	7000mm/s	7000mm/s	7000mm/s
Min Character Size	<0.5mm	<0.5mm	<0.5mm
Marking Size	100×100mm	100×100mm	100×100mm
Rated Power	≤0.5KW	≤0.8KW	≤1KW
Power Supply	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
Control System	Computer	Computer	Computer
Cooling System	Air Cooling	Air Cooling	Air Cooling

Product Introduction

The optical fiber laser markers feature high efficiency in electrical/optical conversion, and wind cooling is employed. The whole system is small in size, with high beam output quality, high reliability, super long service life, and saving energy. The markers are used for fields with higher requirements in depth, smoothness and precision, and they are used to engrave metallic and non-metallic materials, for example, stainless steel decorating parts for handsets, clocks, watches, moulds, ICs, handset buttons, etc. The markers are able to engrave beautiful images on metallic and plastic surfaces.

Features

Small size with less power consumption.
High speed scanner head.
Stable property.
Long lifetime: life expectancy is 100,000 hours.
No maintenance required.
Red light preview: shows the marking position before marking.

Application

Applicable to fields with high requirements for depth, smoothness, and fineness, for example, clocks, watches, mold, and bitmap marking.

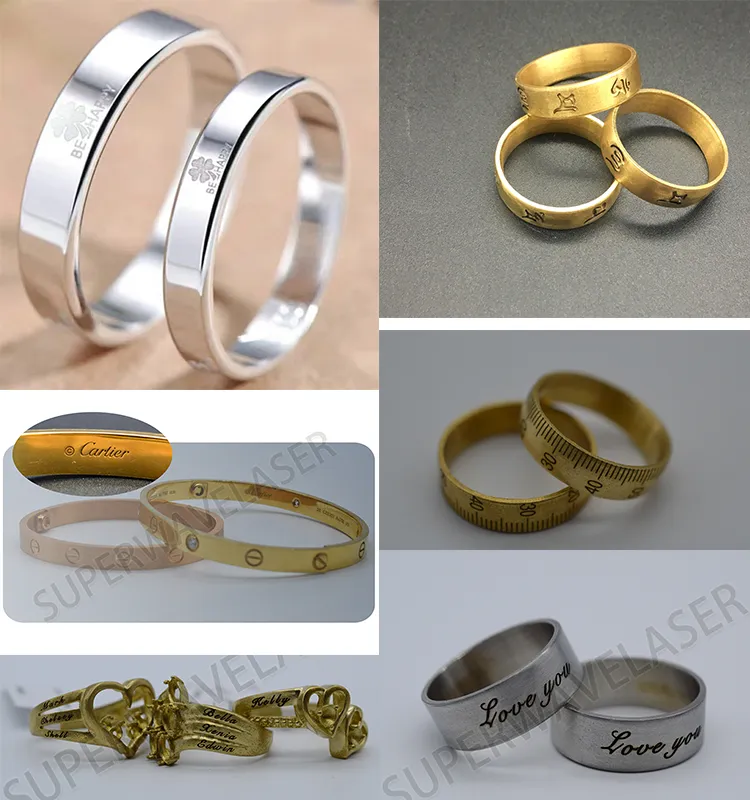

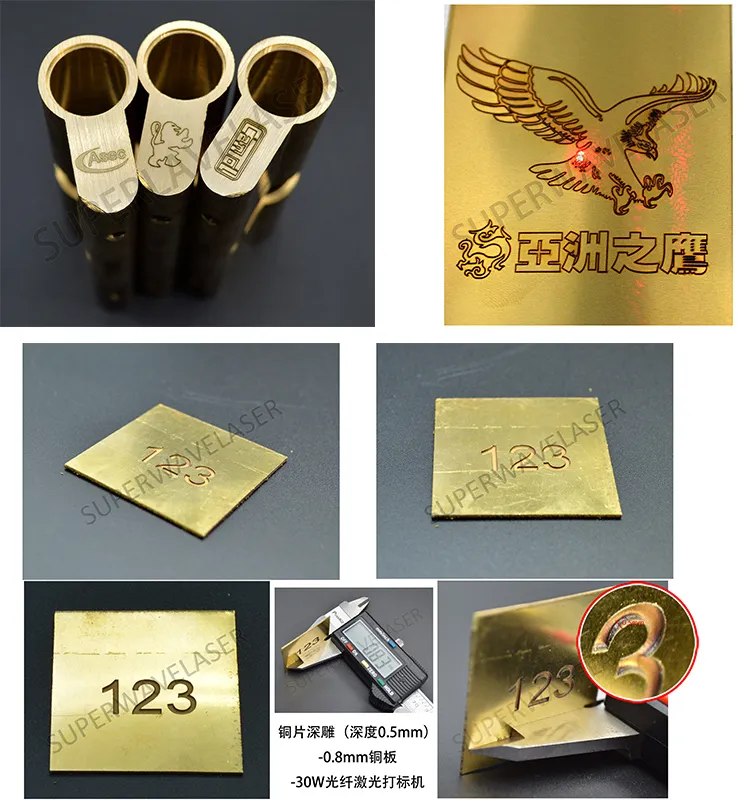

Samples

Why Choose Us

Frequently Asked Questions

❓ Which incoterms can you support?

All incoterms are supported, and we will select the most suitable freight options as per your request.

❓ What is the guarantee period for the machine?

The general guarantee period is one year, which can be extended upon discussion. We will handle any technical issues within the guarantee period free of charge (except for man-made damage). Outside the period, we will still provide assistance to ensure your machine runs smoothly.

❓ How do I operate the machine?

Operation instructions and step-by-step videos will be provided to help you operate the machine. Additionally, our support team is available at any time to assist you via email whenever you have questions.

❓ What are the accepted payment methods?

We support payments via T/T, PayPal, and Western Union. If you require other payment methods, please contact us for confirmation.

❓ Do you offer sample testing services?

Yes, we encourage you to send samples to us for testing. We will test the samples and return them to you with no shipping charge.

❓ What materials can this fiber laser marking machine engrave?

This system is designed to engrave both metallic and non-metallic materials, including stainless steel, watch dials, molds, ICs, buttons, and various plastics.
