CO2 10W 30W 60W 100W 3D Dynamic Laser Printer for Pet PVC and HDPE Bottles Max Capacity Laser Must Print in Three Line Batch Number, Espire Date and Time

1 / 5

CO2 10W 30W 60W 100W 3D Dynamic Laser Printer for Pet PVC and HDPE Bottles Max Capacity Laser Must Print in Three Line Batch Number, Espire Date and Time

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

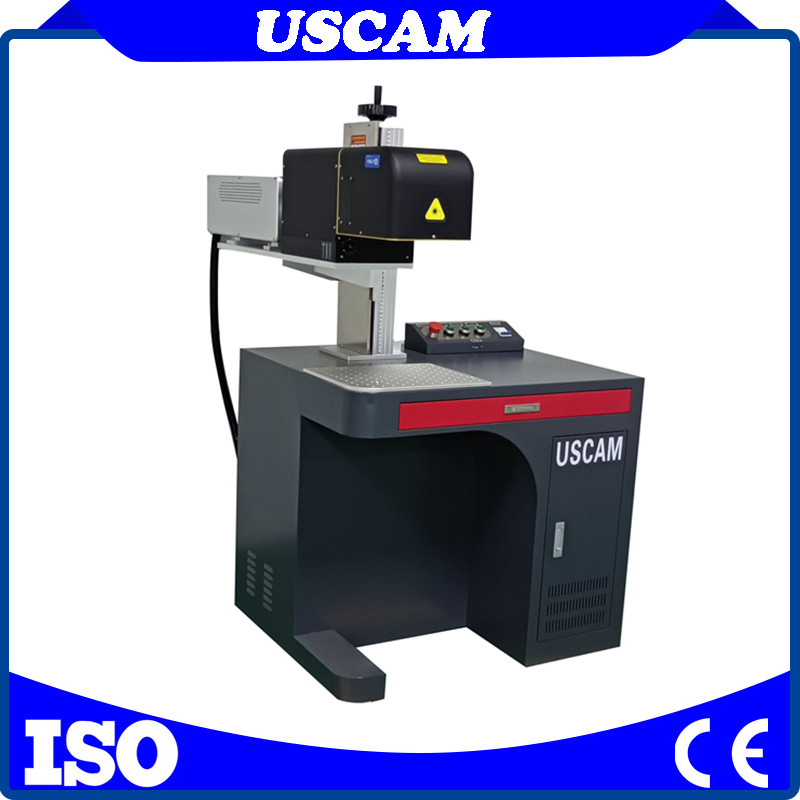

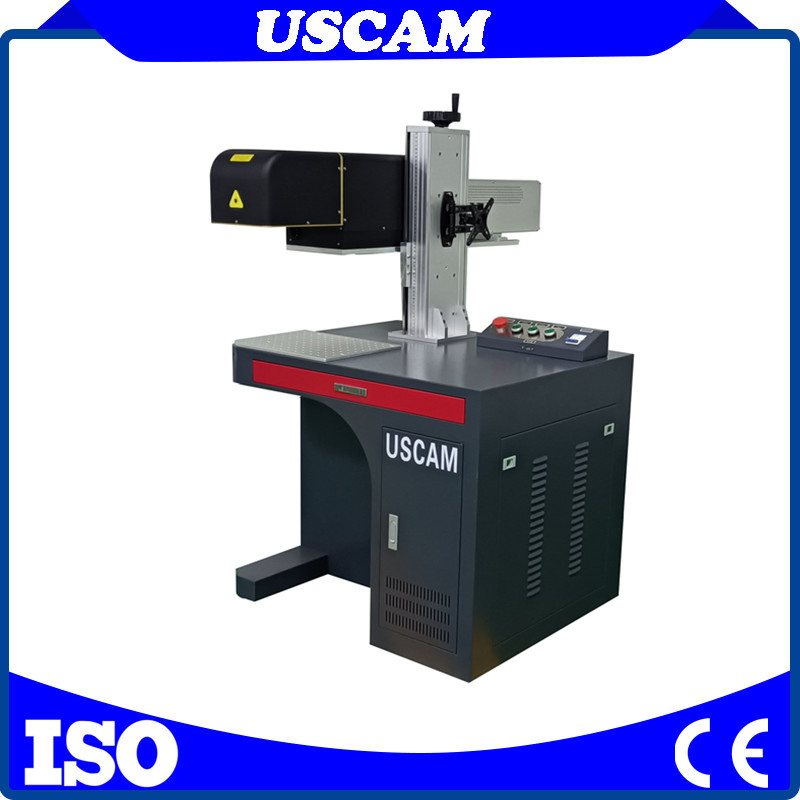

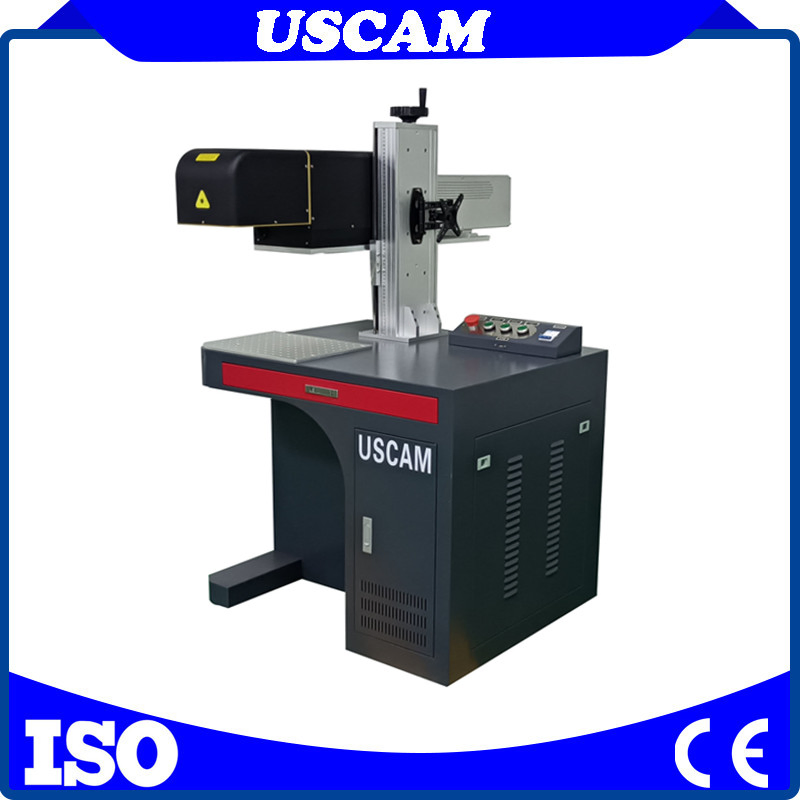

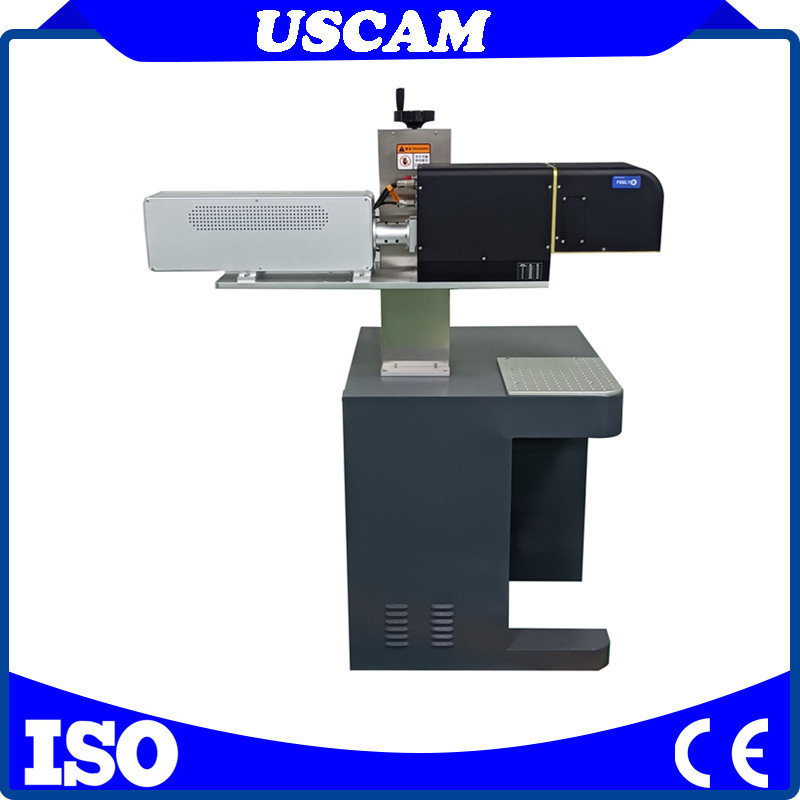

3D Galvanometer Scanner 3D Dynamic Laser Marking Machine CO2 Laser with Automatic Reverse Focusing

The 3D dynamic CO2 laser marking machine adopts imported core components, equipped with a series of advanced technologies such as a high-speed, high-precision 3D galvanometer scanning system and specialized software and control systems, high-quality optical components, a stable laser power supply, and automatic control parts. It achieves fine processing of curved workpieces without defocusing and tracks the focus of deep engraving in real time to improve processing efficiency and quality compared to traditional two-dimensional marking systems.

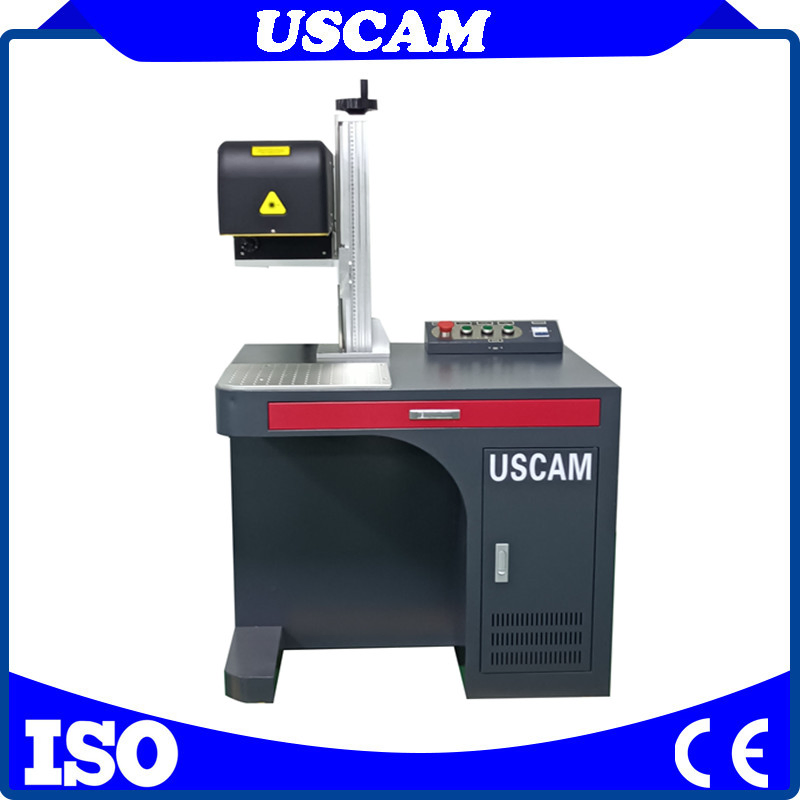

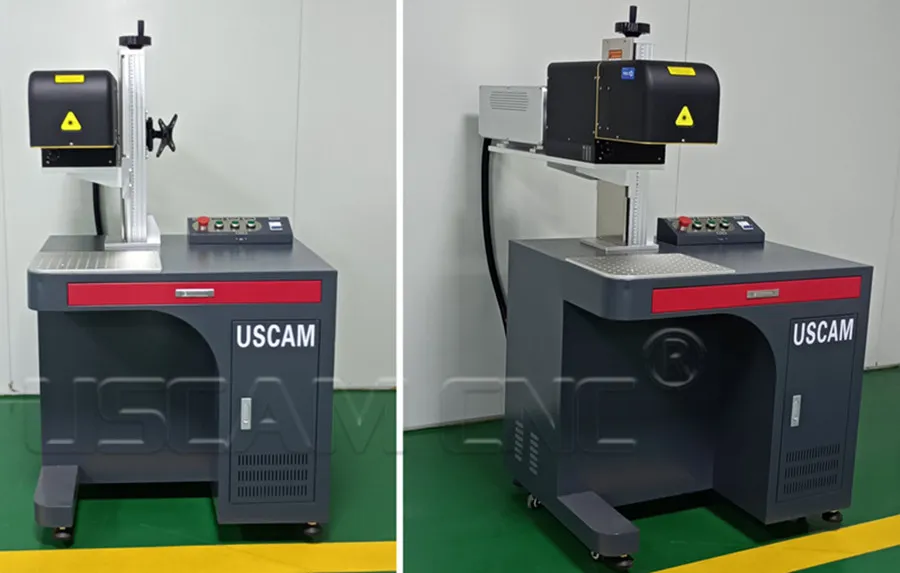

3D Dynamic Laser Printer for Pet PVC and HDPE Bottles

Basic Specifications

Model NO.USC-30W/40W/60W/100W

Laser VisibilityVisible

Applicable MaterialNonmetal

Cooling SystemWater Cooling

Technical ClassPulse Laser

Laser WavelengthCO2 Laser

Laser ClassificationGaseous Laser

TypeCO2 Laser Marking Machine

Marking MethodMask Pattern Marking

Power BrandDavi Brand/American Synrad RF Tube

Laser Wavelength10.64um

Laser Life8000-10000 Hours

Laser Power30W/40W/60W/100W (3D Dynamic)

Marking Area100X100mm to 600X600mm

SoftwareOriginal Feeltek

Control CardOriginal Feeltek

Special FunctionAuto Focus Function

ApplicationWood, Paper, Clothes, Leather, Jeans, Acrylic, Glass

Galvanometer3D Dynamic Type From Feeltek

CertificationFDA & CE

Engraving Type3D Engraving/Curving Engraving

Computer RequirementWindows XP/W7/W8 (32/64bits)

Power Input220V/50Hz or 110V/60Hz

HS Code8456110090

Production Capacity50000/Year

Packaging & Delivery

Package Size77.00cm * 87.00cm * 152.00cm

Package Gross Weight120.000kg

Packaging DetailStandard plywood Case for Export

Delivery Detail7-10 days after order confirmation

Detailed Technical Parameters

NO	Parameter Item	Specification Details
1	Laser power	30W/40W/60W/100W RF tube (Dawei brand/Synrad brand)
2	Working area	110110 / 200200 / 300300 / 400400 / 600*600 mm (optional)
3	Cooling system	Water cooling (air chiller)
4	Table type	Aluminum alloy table
5	Control software	3D Feeltek control system and software
6	Operating system	Microsoft Windows 7/8/10
7	Laser Wavelength	10.64μm
8	Graphic formats supported	BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc.
9	Response time	0.5ms
10	Life span	8000 - 10000 hours
11	Frequency of pulse	20-100KHz
12	Max marking depth	≤0.4mm
13	Marking speed	≤7000mm/s
14	Marking lines	1-10 lines (within the marking area)
15	Minimum line width	0.01mm
16	Minimum character size	0.15mm
17	Repeatability accuracy	±0.002mm
18	Resolution ratio	0.1mm
19	Marking content	English letters, characters, figures, date, bar codes, and graphics
20	Unit power	≤1.2KW

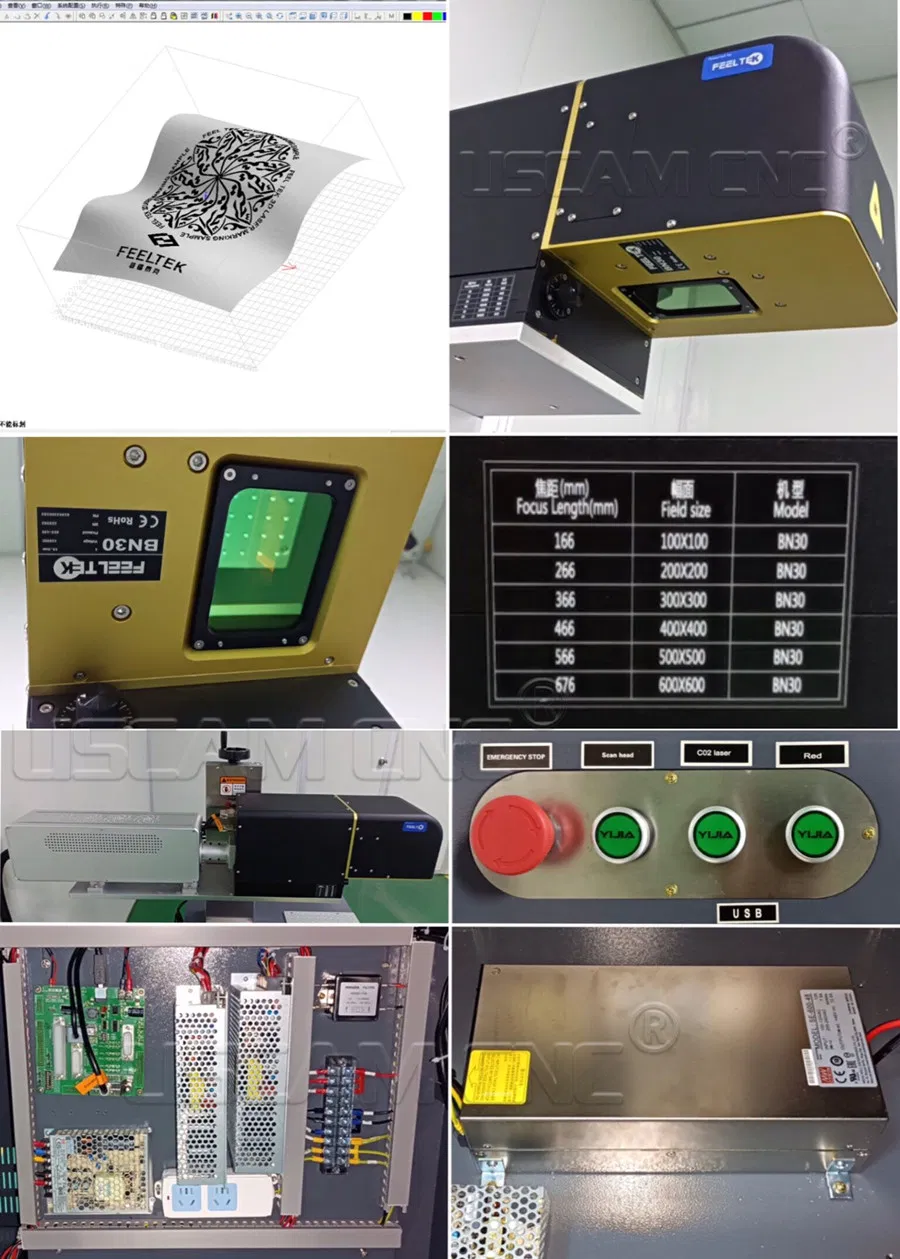

Machine Parts & Components

Machine Parts	Specification	Quantity
Laser generator	American nLight Laser Module - GL	1 set
Laser wavelength	10.64um	1 set
Galvanometer	Scanquick high digital scanning galvanometer	1 set
Focusing lens	FEELTEK focusing lens	1 set
Controlling software	FEELTEK Software	1 set
Computer	Industrial computer	1 set
Cooling system	Water cooling	1 set
Rotating head	Compatible Rotating Head	1 set
Fixture	Compatible Fixture	1 set

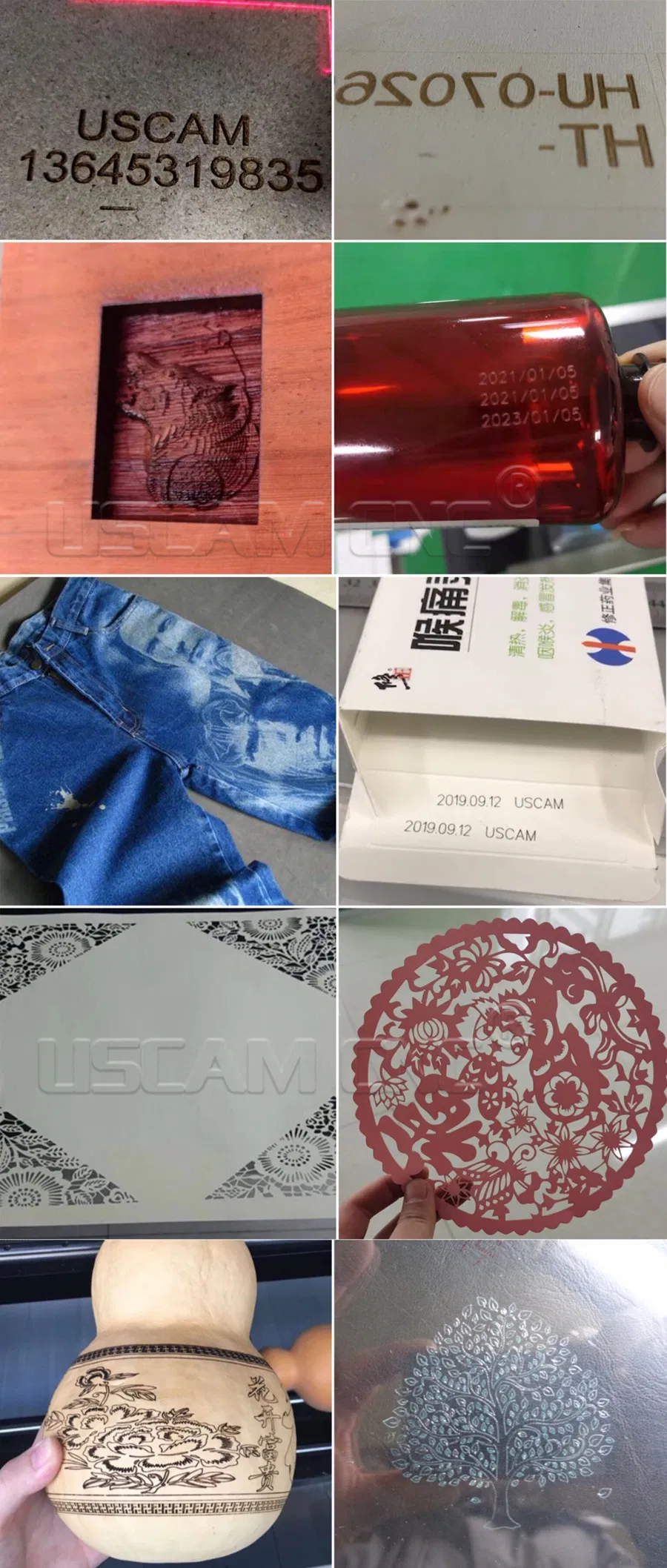

Suitable Industries & Materials

The 3D dynamic CO2 laser marking machine is suitable for most non-metallic materials such as bamboo products, wood, acrylic, leather, cloth, paper, glass, architectural ceramics, ABS, PVC, epoxy resin, organic materials, PMMA sheets, plastic, rubber, etc.

It is widely used in pharmaceutical packaging, food and beverage packaging, textile, leather, wood, handicraft supply, printing, electronic components, communication products, advertising, watches, glasses, and manufacturing industries.

Material	CO2 Laser Machine	Material	Fiber Laser Machine
Wood	√	Aluminum	√
Acrylic	√	Stainless Steel	√
Fabric	√	ABS	√
Glass	√	Brass	√
Coated Metals	√	Carbon Fiber	√
Ceramic	√	Carbon Nanotube	√
Delrin	√	Cobalt Chrome Steel	√
Cloth	√	Copper	√
Leather	√	Colored Delrin	√
Marble	√	Diallyl Phthalate	√
Matte Board	√	Glass Filled PEEK	√
Melamine	√	Glass Filled Teflon	√
Paper	√	Magnesium	√
Mylar	√	Metal Plated Ceramics	√
Press Board	√	Molybdenum	√
Rubber	√	Mild Steel	√
Wood veneer	√	Nylon	√
Fiber Glass	√	Polybutylene Terephthalate	√
Painted Metals	√	Polysulphone	√
Tile	√	PET	√
Plastic	√	Santoprene	√
Cork	√	Silicon Carbide	√

Quality Control & Service

Standardized QC Process

Exported globally to North America, Europe, Africa, Central/Latin America, Middle East, and Asia. Equipped with CE and FDA certifications for hassle-free customs clearance and operation.

Our Services:

24-Month Warranty: Main machine parts (excluding consumables) replaced free of charge during the warranty period under normal operations.
Consumables at Agent Price: We provide consumable components at base agency cost when replacements are needed.
Lifetime Technical Support: Continuous professional Q&A and technical guidance remotely online, even after the warranty period expires.
Instructional Resources: Complete English manuals and video demonstrations are sent with the machine.
Training & Customization: Free training at our plant, and engineer deployment to your facility for installation and calibration if requested.

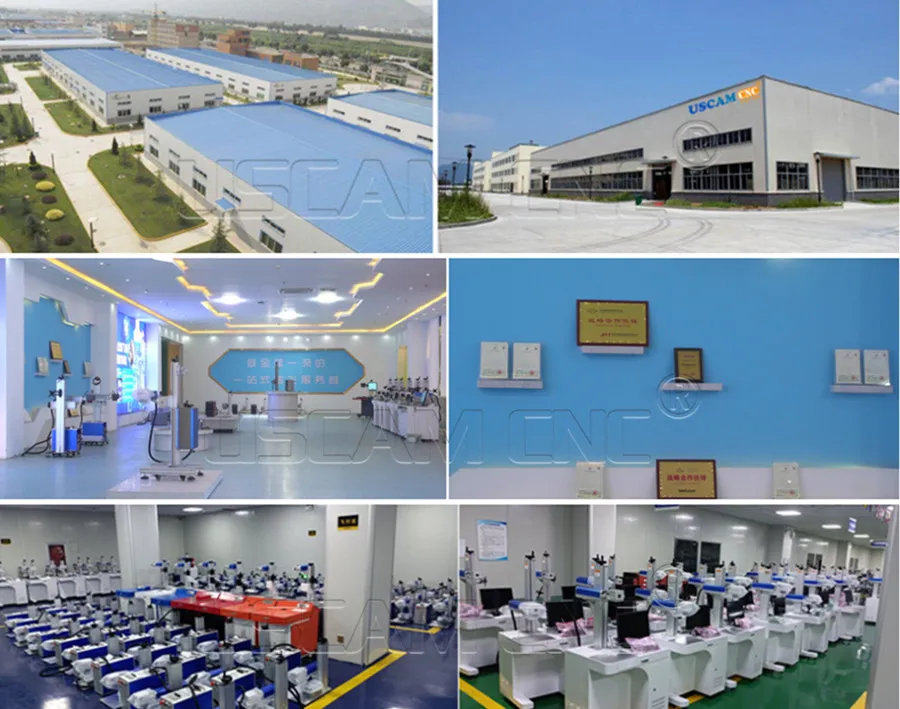

Manufacturing Profile

We specialize in fiber laser cutting machines, laser marking machines, laser cleaning machines, laser welding machines, CO2 lasers, CNC routers, and plasma systems. As a leading manufacturer since 2003, all machines comply with CE and FDA certifications. Our configurations use premium components, including Synrad/Coherent sources, high-speed spindles, THK linear motion guide systems, and YASKAWA servo drivers. High-quality products and comprehensive after-sales service ensure standard-setting performance worldwide.

Frequently Asked Questions (FAQ)

What software is used, and what are the main functions of the 3D dynamic laser marking machine?

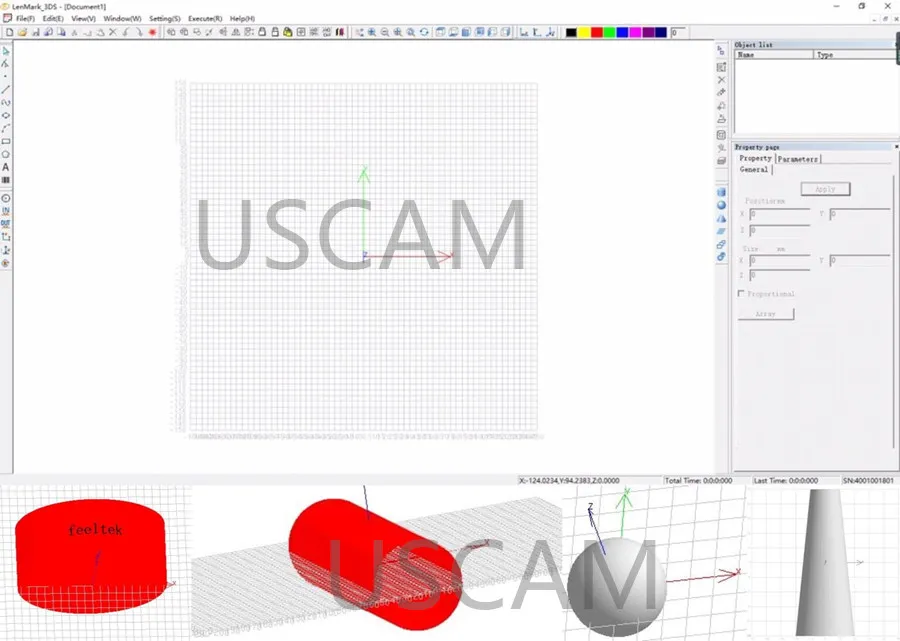

The machine uses professional Feeltek software designed specifically for 3D marking. It performs three key functions: large-area marking, curved surface marking, and deep Relief engraving.

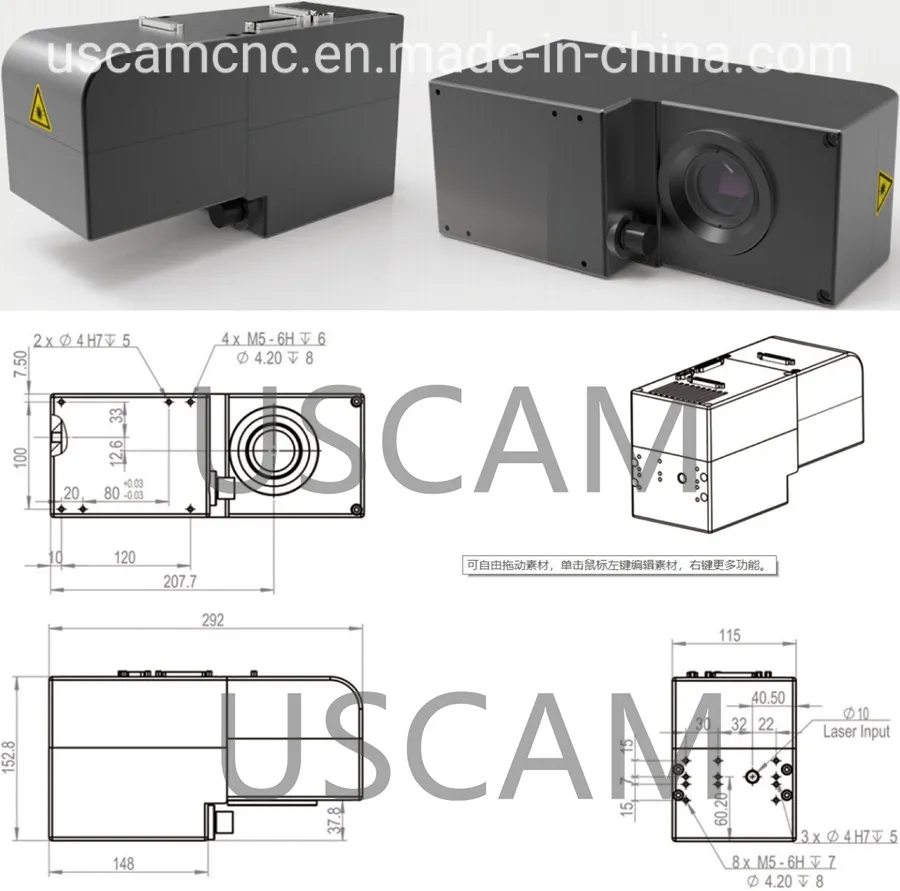

Which optical scanning system and lenses are installed in this machine?

The marking system is equipped with the Feeltek professional 3D digital scanning galvanometer and dedicated focusing lens, ensuring high-speed tracking and precision focusing.

What are the standard payment terms for placing an order?

Our standard payment term is 30% T/T deposit in advance to initiate production, and the remaining 70% balance paid before delivery.

How is the machine production and shipping process managed?

Once the 30% deposit is received, production begins immediately. Upon completion, we provide video tests and photos for validation. Once approved, the remaining balance is paid, and shipping is arranged via your preferred shipping agent or our coordinated logistics partner.

What certifications does the laser marking machine have for international imports?

The entire series of laser marking machines holds CE and FDA certifications, making them fully compliant with safety and import standards for North America, Europe, and other global destinations.

How is technical support provided post-purchase?

We offer lifetime free technical support and 24-hour online services through remote assistance, email, or messaging applications. English manuals, videos, and operational guide packages are shipped with the machine hardware.
