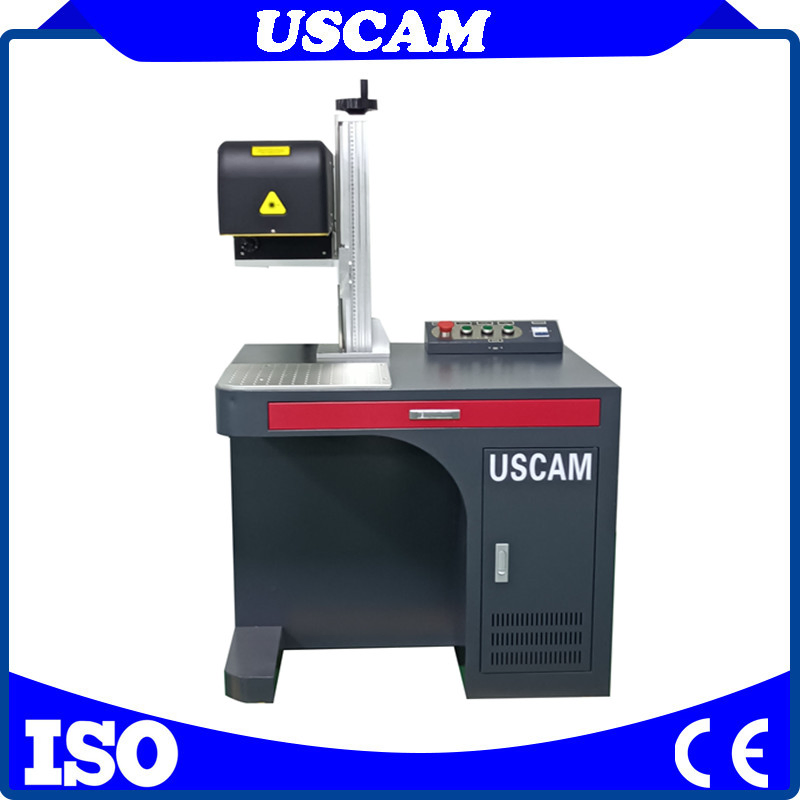

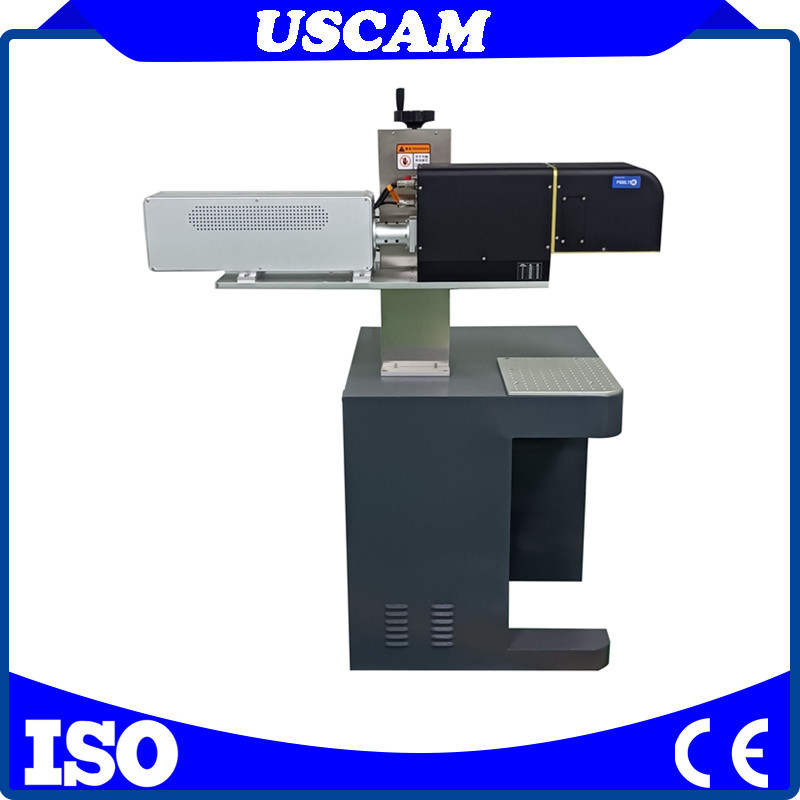

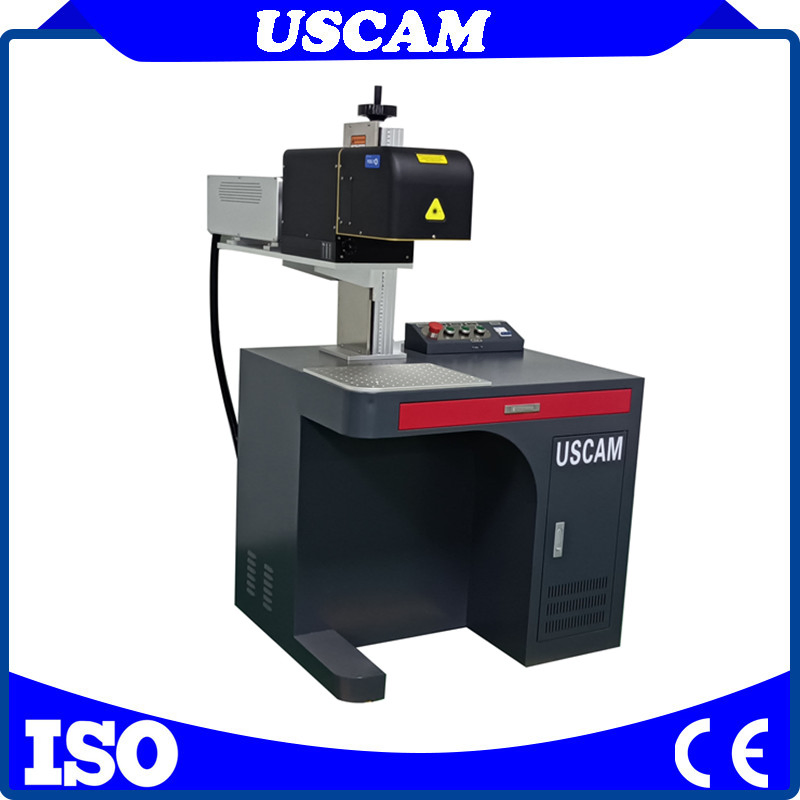

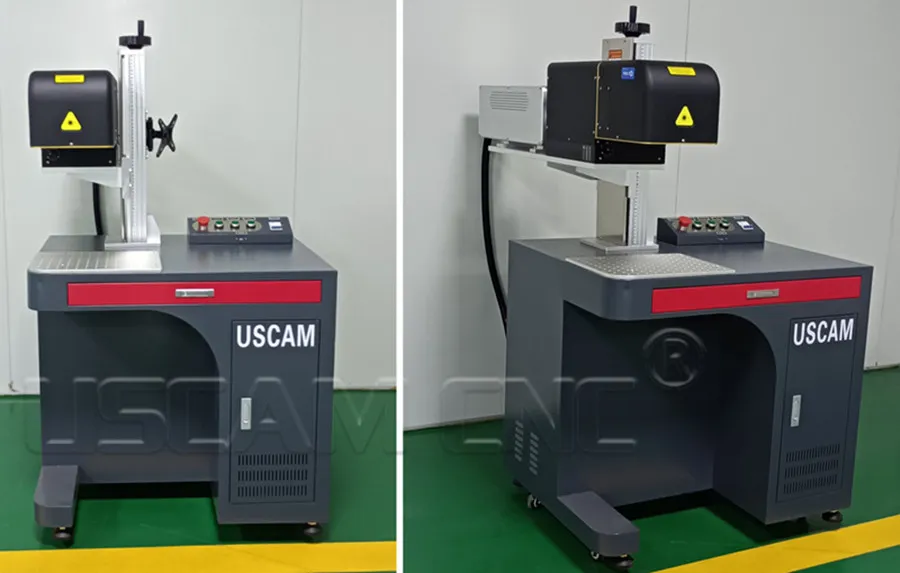

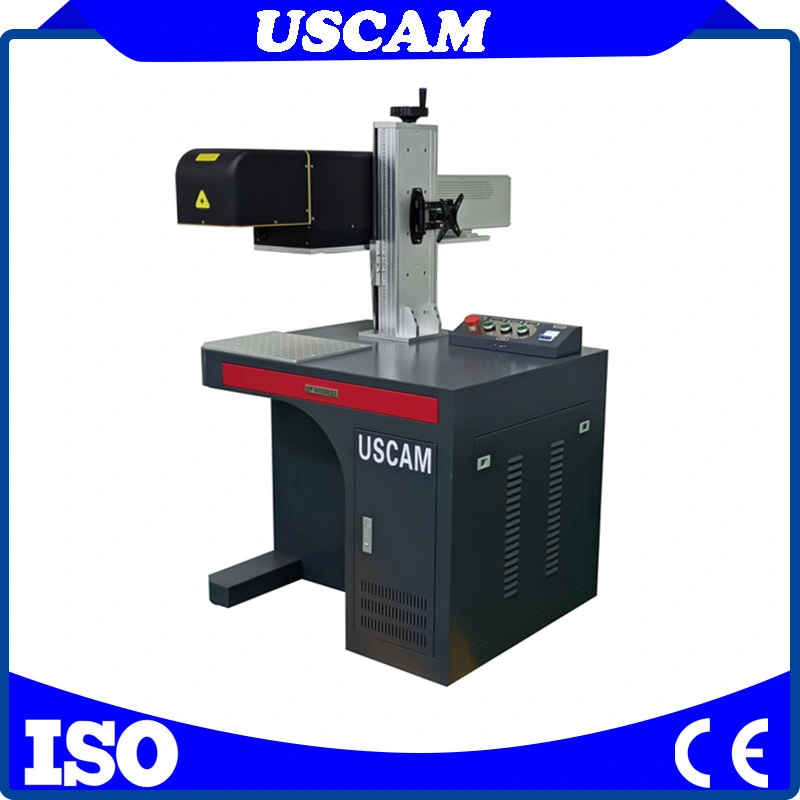

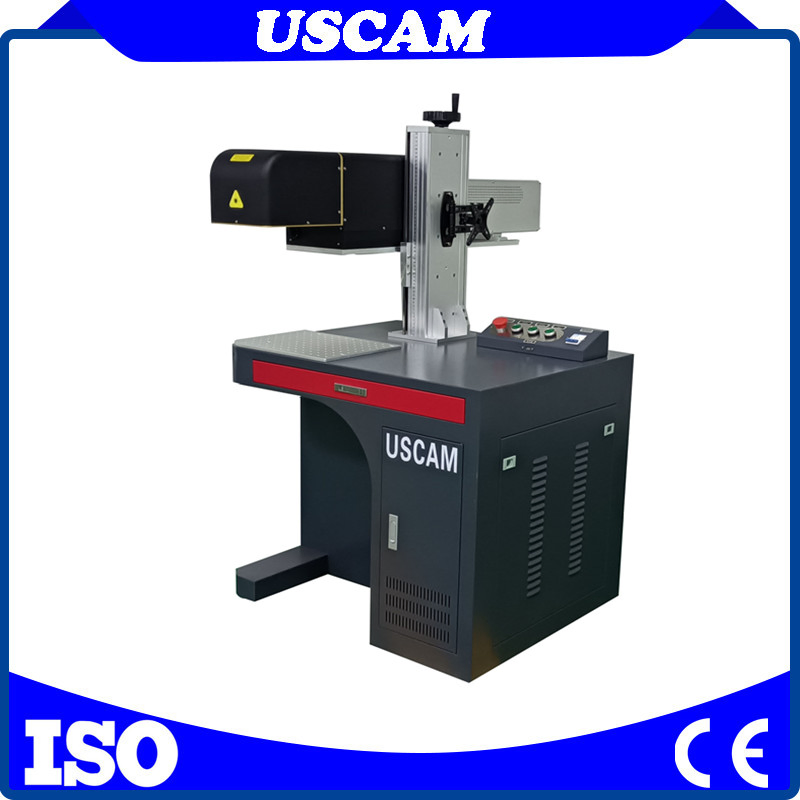

The 3D dynamic CO2 laser marking machine utilizes advanced high-speed and high-precision Feeltek 3D galvanometer scanning systems, specialized software, premium optical components, and auto-focus control configurations. This technology allows seamless fine-processing of complex curved workpieces without defocusing. Real-time focus tracking during deep engraving ensures high efficiency and superior output compared to standard 2D laser marking systems.
| NO. | Parameter | Specifications |
|---|---|---|
| 1 | Laser Power | 30W/40W/60W/100W RF tube (Dawei brand / Synrad brand) |
| 2 | Working Area | 110*110 / 200*200 / 300*300 / 400*400 / 600X600mm (Optional) |
| 3 | Cooling System | Water cooling (Air chiller) |
| 4 | Worktable | Aluminum alloy table |
| 5 | Control Software | 3D Feeltek control system and software |
| 6 | Operating System | Microsoft Windows 7 / 8 / 10 |
| 7 | Laser Wavelength | 10.64μm |
| 8 | Supported Graphic Formats | BMP, JPG, GIF, TGA, PNG, TIF, AI, DXF, DST, PLT, etc. |
| 9 | Response Time | 0.5ms |
| 10 | Pulse Frequency | 20-100KHz |
| 11 | Max Marking Depth | ≤0.4mm |
| 12 | Marking Speed | ≤7000mm/s |
| 13 | Min Line Width / Character | 0.01mm / 0.15mm |
| 14 | Repeatability Accuracy | ±0.002mm |
| 15 | Marking Content | English letters, characters, figures, graphics, text, patterns, dates, barcodes, etc. |
| 16 | Unit Power | ≤1.2KW |
| Machine Part | Specification | Quantity |
|---|---|---|
| Laser Generator | American nLight Laser Module - GL | 1 set |
| Laser Wavelength | 10.64um | 1 set |
| Galvanometer | Scanpuick high digital scanning galvanometer | 1 set |
| Focusing Lens | FEELTEK focusing lens | 1 set |
| Controlling Software | FEELTEK Software | 1 set |
| Computer | Industrial computer | 1 set |
| Cooling System | Water cooling | 1 set |
| Rotating Head | High-precision type | 1 set |
| Fixture | Adjustable position fixtures | 1 set |
Suitable Industries: This machine is widely used in pharmaceutical packaging, food & beverage packaging, textiles, leather, wood, handicrafts, printing, electronic components, communication products, advertising, watches, glasses, and glass manufacturing.
Supported Processes: Ideal for marking, engraving, hollowing, and cutting various characters, symbols, graphics, images, barcodes, serial numbers, etc., on non-metallic surfaces.
| Material Type | CO2 Laser Support | Material Type | Fiber Laser Support |
|---|---|---|---|
| Wood / Acrylic / Fabric | √ (Supported) | Aluminum / Stainless Steel | √ (Supported) |
| Glass / Coated Metals | √ (Supported) | ABS / Brass | √ (Supported) |
| Ceramic / Delrin | √ (Supported) | Carbon Fiber / Carbon Nanotube | √ (Supported) |
| Cloth / Leather | √ (Supported) | Copper / Colored Delrin | √ (Supported) |
| Marble / Matte Board | √ (Supported) | Diallyl Phthalate | √ (Supported) |
| Melamine / Paper | √ (Supported) | Glass Filled PEEK / Teflon | √ (Supported) |
| Mylar / Press Board | √ (Supported) | Magnesium / Plated Ceramics | √ (Supported) |
| Rubber / Wood Veneer | √ (Supported) | Molybdenum / Mild Steel | √ (Supported) |
| Fiber Glass / Painted Metals | √ (Supported) | Nylon / PBT | √ (Supported) |
| Plastic / Cork | √ (Supported) | Polysulphone / PET / Silicon Carbide | √ (Supported) |
Machines are rigorously tested and exported to key international markets including the USA, Europe, Africa, Central America, Latin America, UAE, Pakistan, India, Korea, etc. All systems carry CE and FDA certification for straightforward customs clearing and importing.
| Packaging Detail | Standard plywood Case for Export |
| Delivery Detail | 7-10 days after order confirmation |

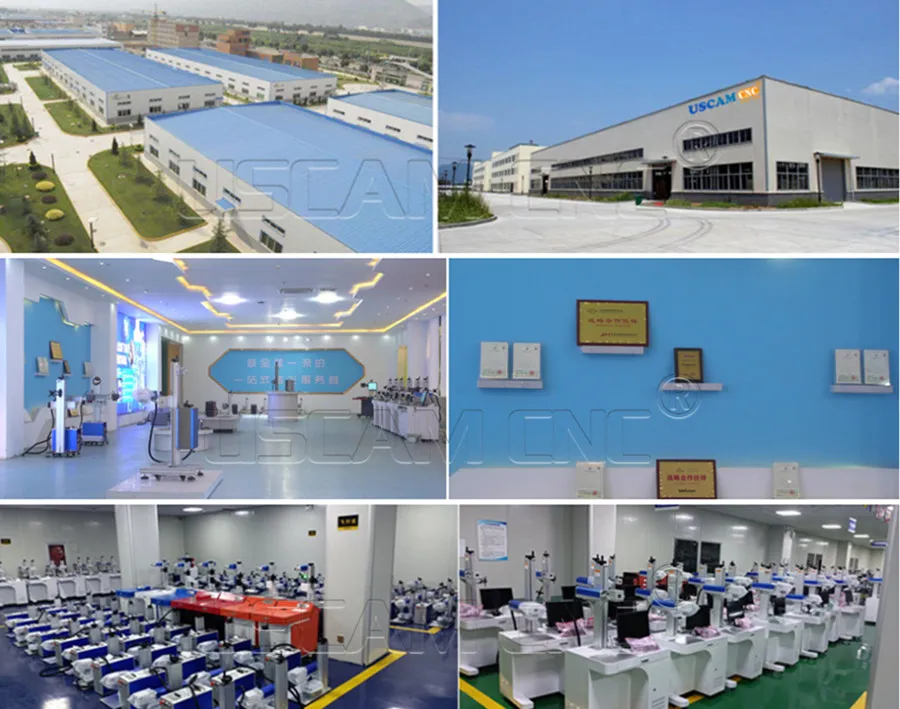

Specializing in the development of fiber laser cutters, laser marking systems, cleaning machines, welding systems, CO2 lasers, CNC routers (Stone, ATC, mold, vibrating knives), and plasma cutting units since 2003.
By leveraging certified quality architectures (CE, FDA) and incorporating high-tier components from regions like Germany, Italy, Japan, and the United States (including Synrad, Coherent, Siemens controls, and YASKAWA servos), these systems ensure consistent industrial throughput for users and agents worldwide.
The machine uses professional Feeltek software optimized for 3D marking. Its 3 primary functions include:

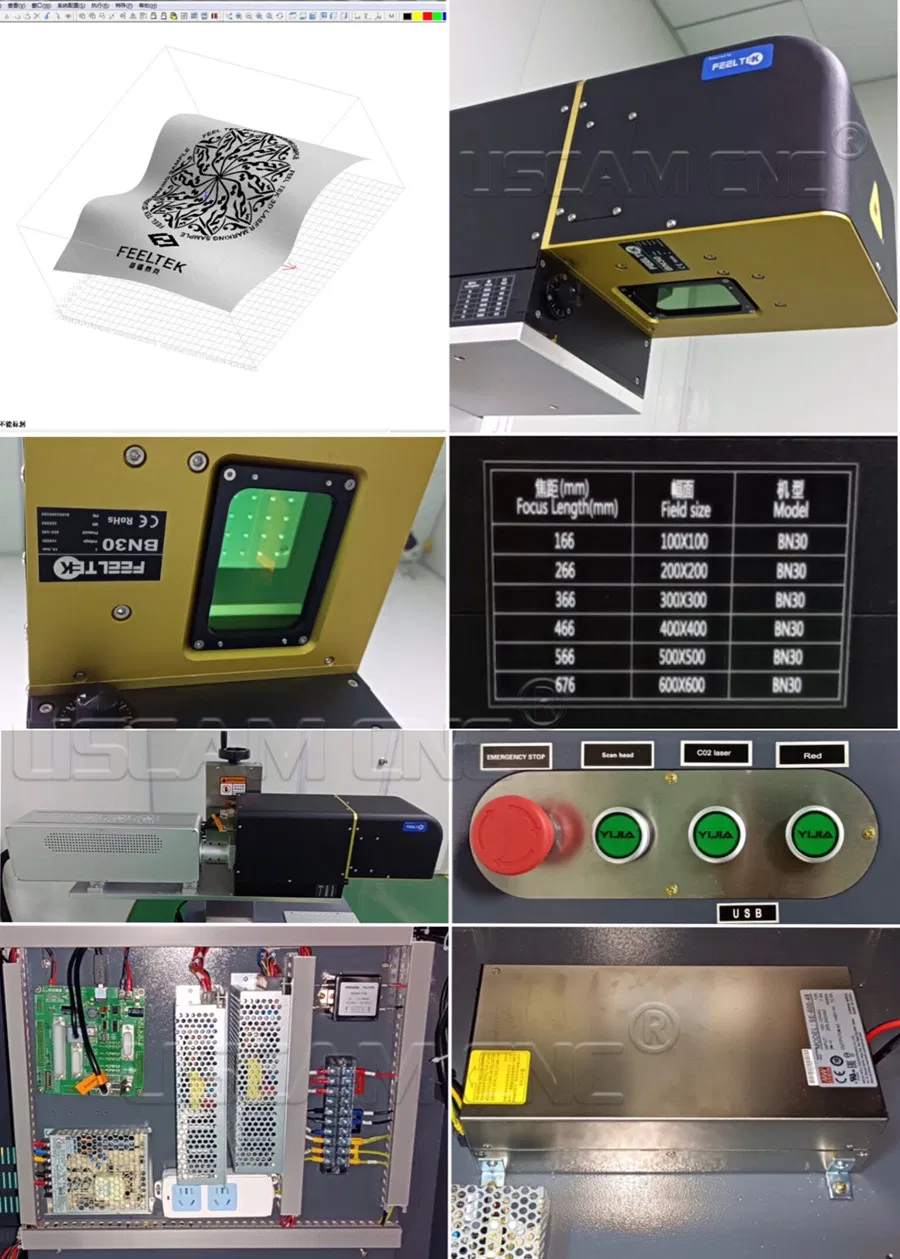

The marking machine integrates a professional Feeltek 3D digital control card and dynamic focus 3D lens systems specifically calibrated for precise, high-speed 3D surface scanning.
The standard payment term is 30% T/T in advance as a deposit to initiate production, and the remaining 70% balance is required before final delivery.
The process is divided into three main phases:

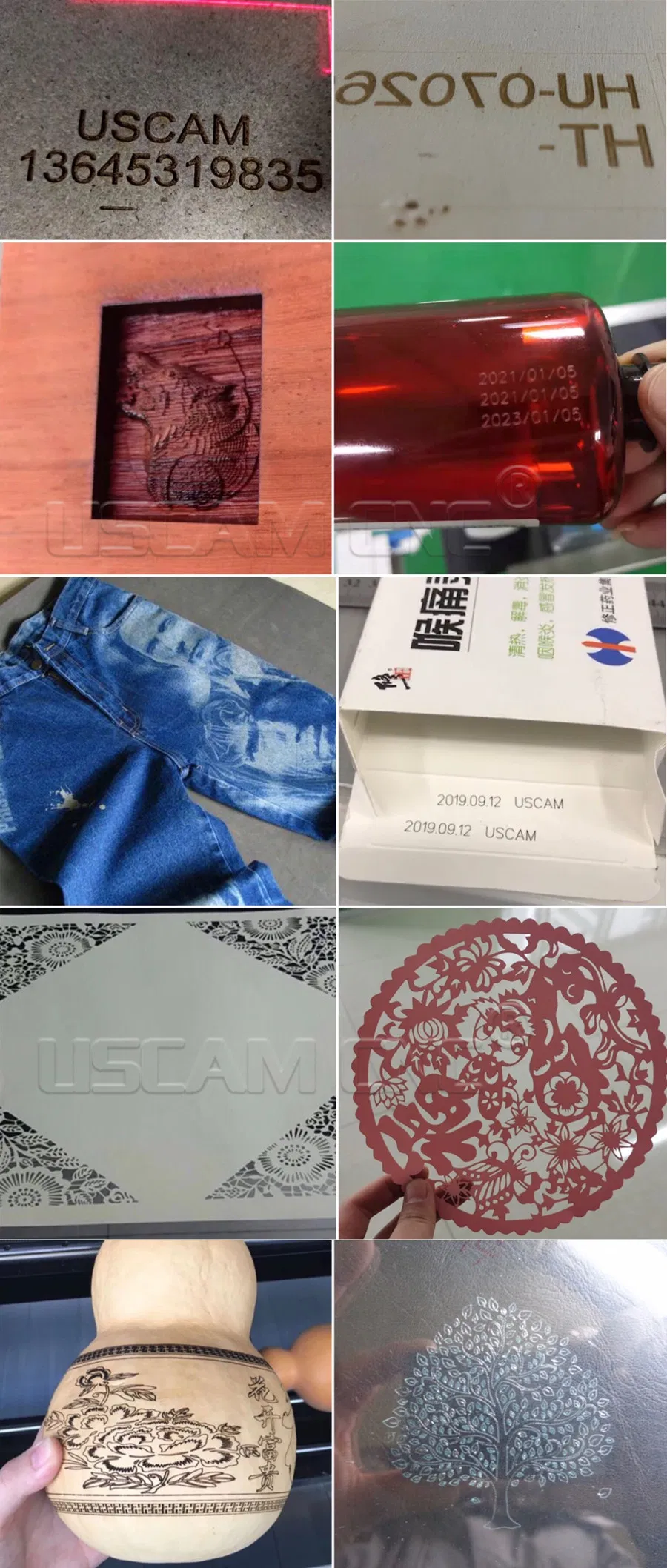

This CO2 laser marking machine is highly suited for non-metal materials. Common applications include wood, bamboo, acrylic, leather, fabrics/jeans, paper, glass, architectural ceramics, ABS, PVC, and organic materials.
All units are packed in heavy-duty, standard export plywood cases. This provides complete structural protection during transport, ensuring the machinery arrives safely and without damage.
