Basic Info.
Key System Details

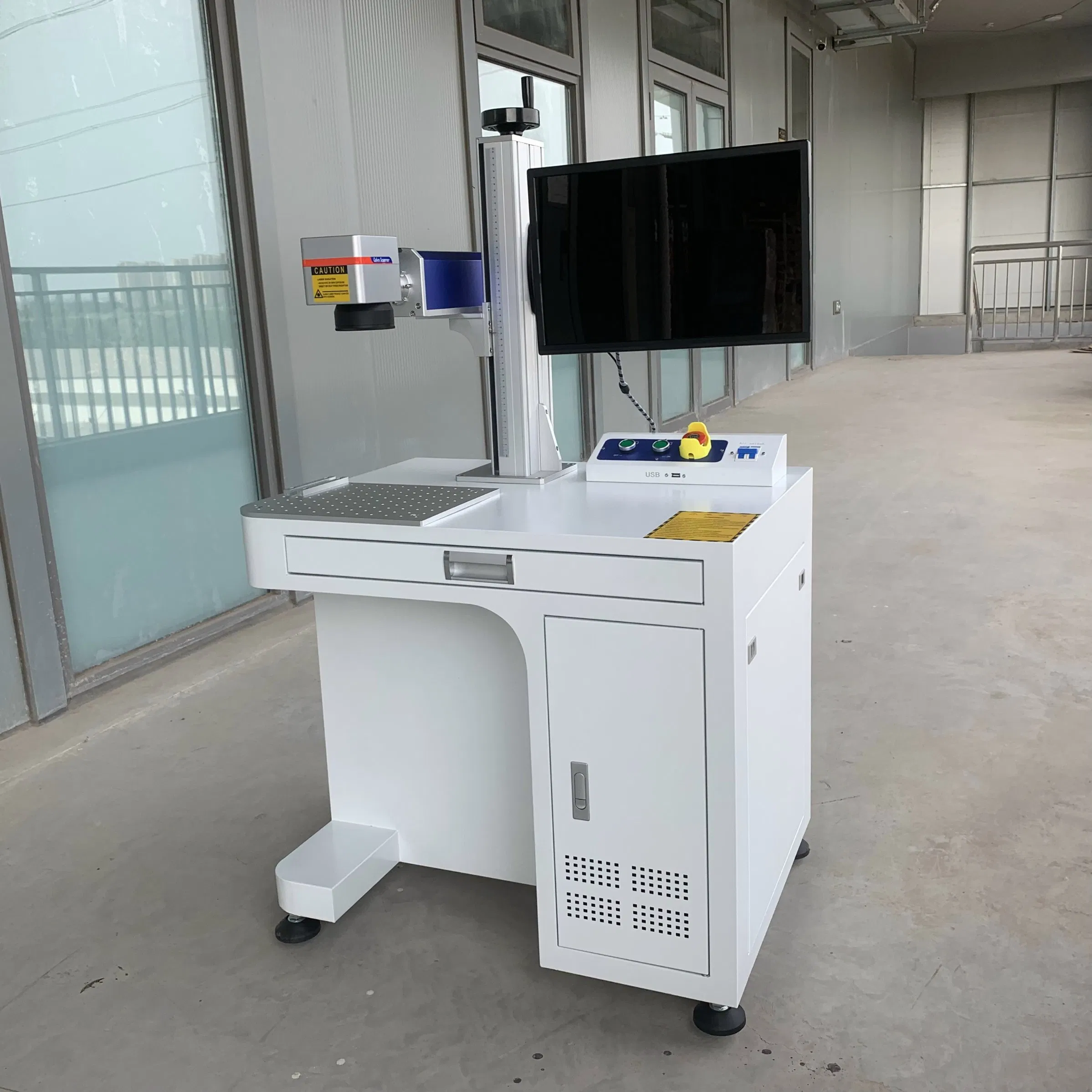

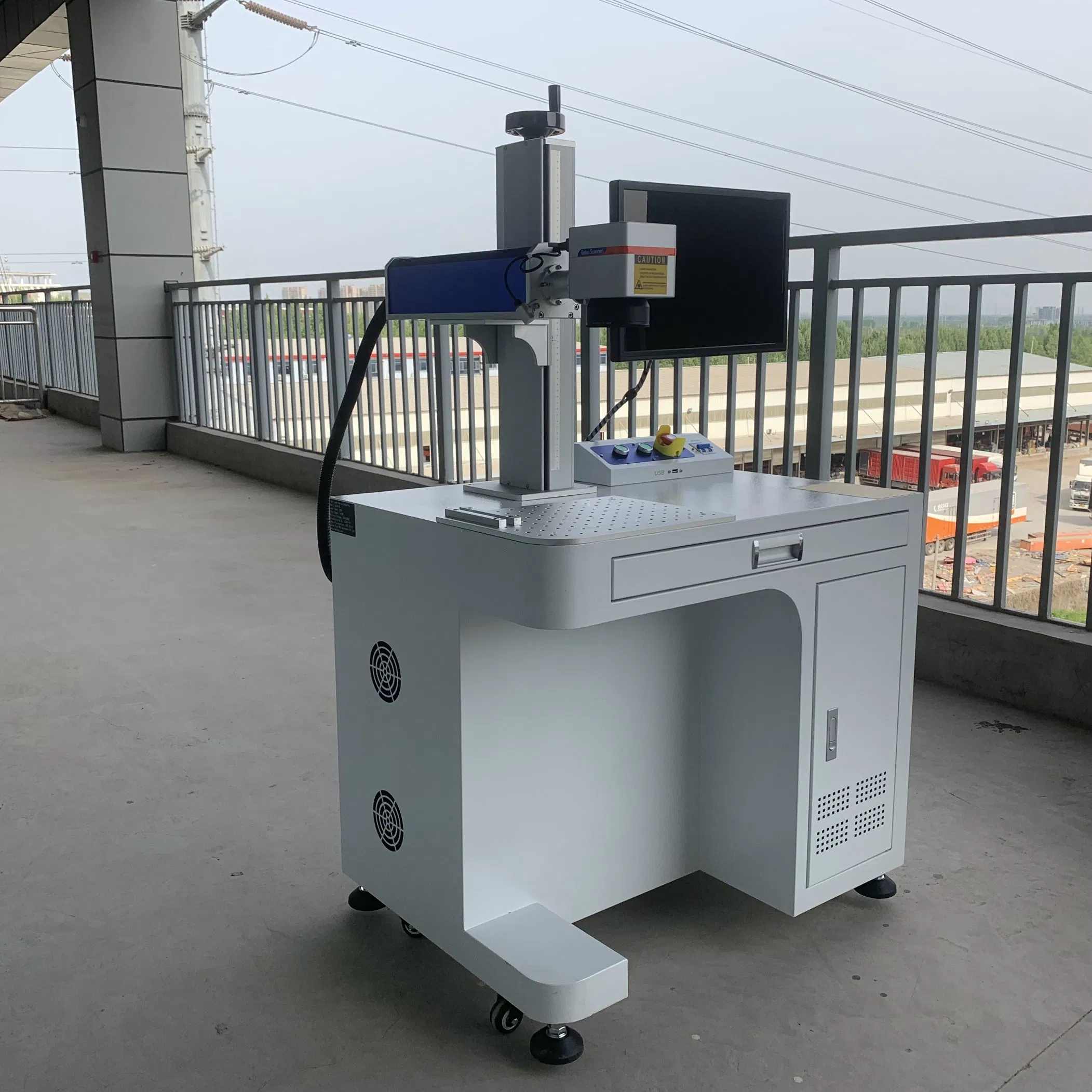

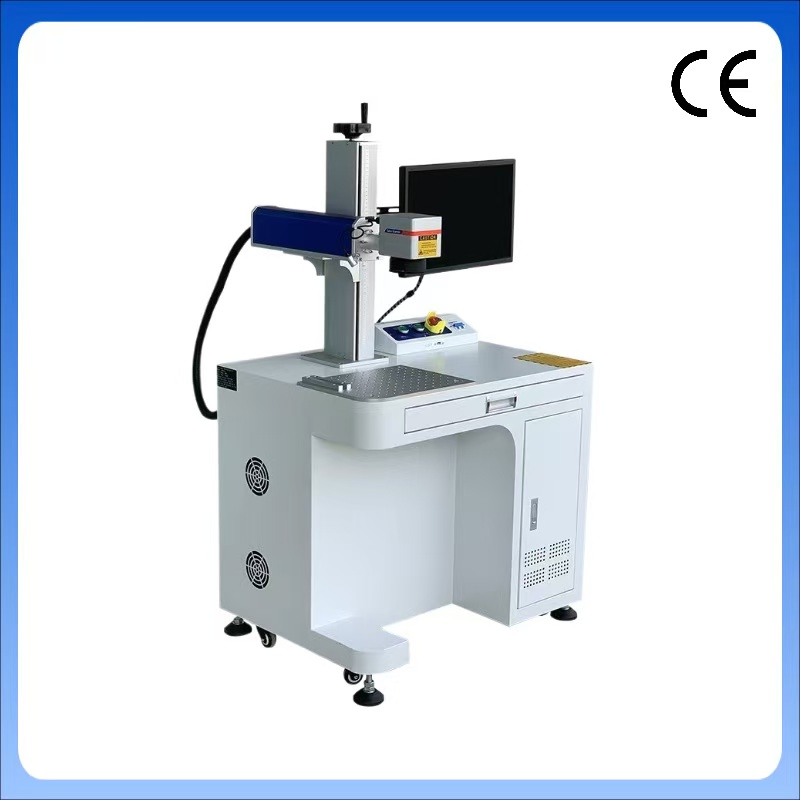

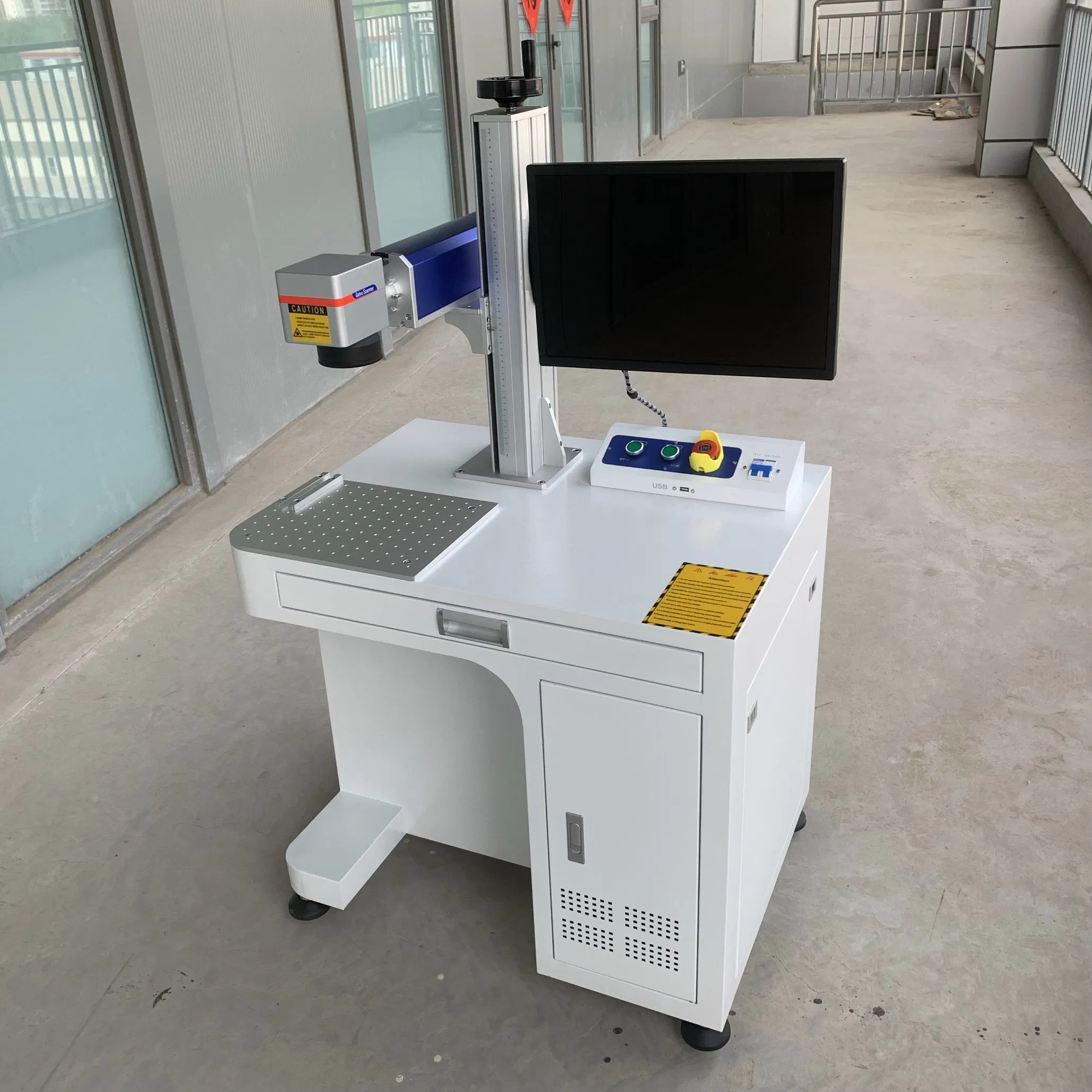

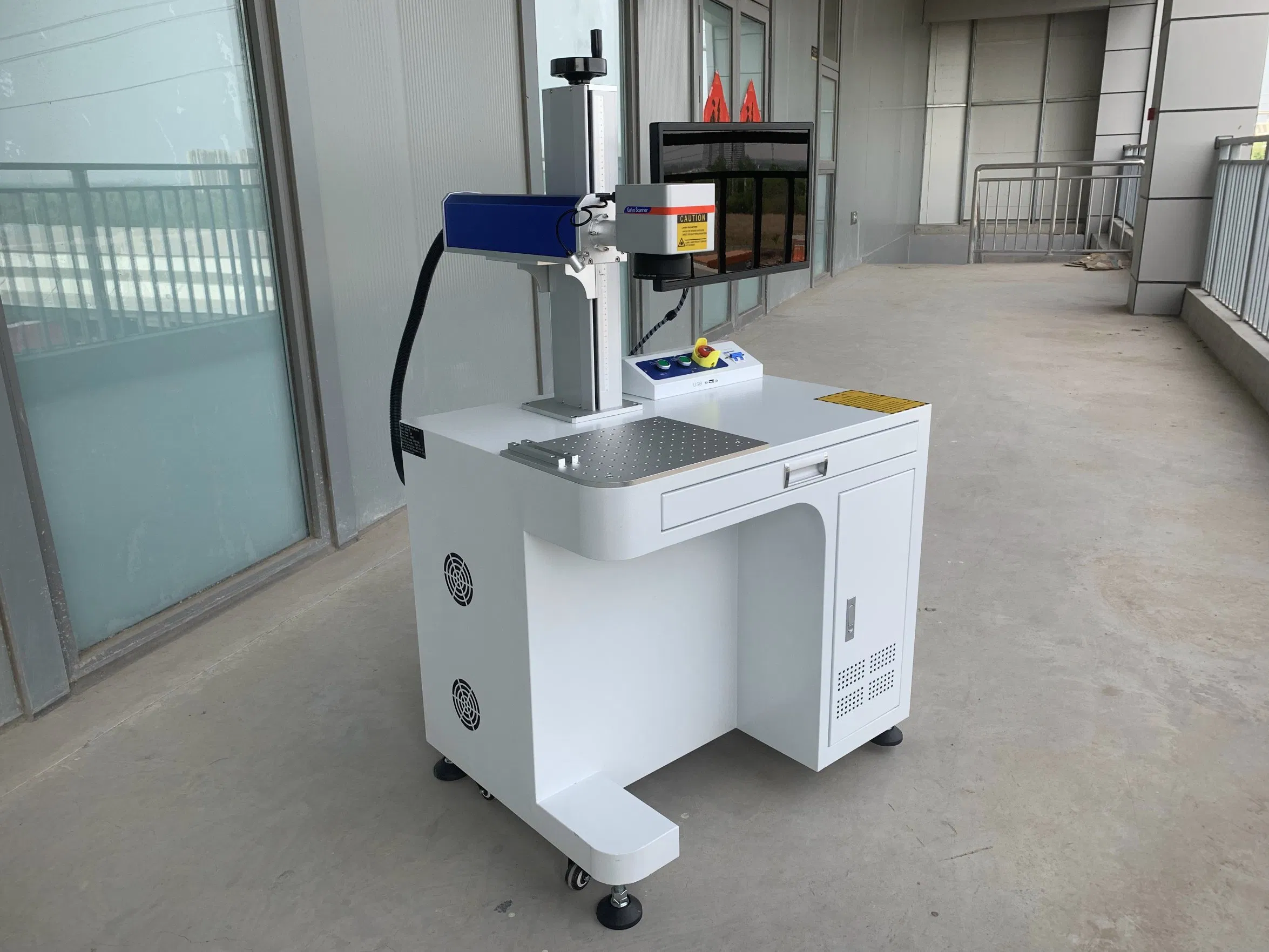

Designed specifically for industrial metal engraving, utilizing a powerful fiber laser system with high-speed precision positioning. Features a fully air-cooled setup for uninterrupted output.
| Model NO. |
SR-D |
| Laser Visibility |
Invisible |
| Applicable Material |
Metal & Selected Non-Metals |
| Cooling System |
Air Cooling |
| Technical Class |
Continuous Wave Laser |
| Laser Wavelength |
Fiber Laser (1064nm) |
| Type |
Optical Fiber Laser Marking Machine |
| Marking Method |
Scanning Marking |
| Processing Area |
70*70mm, 100*100mm, 200*200mm, 300*300mm |
| Fiber Power |
20W / 30W / 50W / 100W |
| Laser Source Life Span |
100,000 Hours |
| Resetting Accuracy |
0.01mm |
| Marking Speed |
7000mm/s |
| Compatible Software |
CorelDraw / AutoCAD / Photoshop / AI |
| Min. Line Width |
0.02mm |
| Position Type |
Red Dot Pointer |
| Support Graphic Format |
DXF, PLT, AI, BMP, JPG, etc. |
| Gross Power |
500W - 800W |
Packaging & Delivery
| Package Size |
54.00cm * 28.00cm * 32.00cm |
| Package Gross Weight |
55.000kg |
| Exterior Packaging |
Plywood Case |
| Production Capacity |
300 sets Per Month |
| Delivery Time |
3-5 working days |
Product Description & Advantages
This high-efficiency fiber laser marker is optimized for precise, high-speed engravings on metallic materials and various industrial plastics.
-
Excellent Light Quality
Comparing with traditional solid laser marking machines, the angle of divergence is only 1/4 of diode pump laser systems. Extremely suitable for high-precision marking needs.
-
Low Operation Costs
Photoelectric conversion efficiency max is 30% while the overall power usage is kept under 500W. Eliminates daily printer maintenance and cleaning nozzles.
-
Maintenance Free & Extended Lifespan
Equipped with a solid laser diode pumping source within a fully sealed light path design, ensuring up to 100,000 hours of continuous operations.
-
Rapid Process Speeds
Achieves processing speeds 5 to 10 times faster than legacy laser marking machines.
Technical Parameters Specification
| Parameter Name |
Specifications Details |
| Model |
SR-D |
| Processing Area |
110mm*110mm / 160*160mm / 200*200mm / 300*300mm |
| Fiber Power Options |
20W / 30W / 50W / 100W |
| Cooling Mode |
Air Cooling |
| Laser Wavelength |
1064nm |
| Resetting Positioning Accuracy |
±0.003mm |
| Marking Speed |
≤7000mm/s |
| Working Voltage |
220V/1ph/50/60HZ |
Machine Key Components

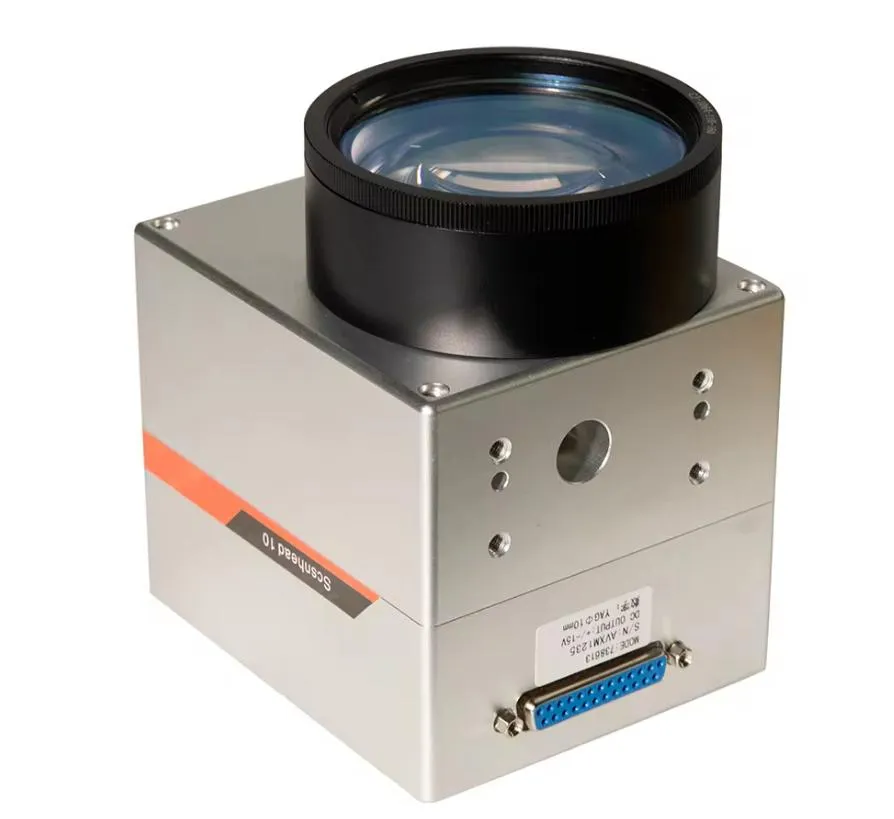

Galvo Lens / Scan Head
Features two high-speed motor-controlled reflection lenses inside the scanner head, offering up to 7000mm/s fast marking speeds. Auto-focus and 3D options are customizable.

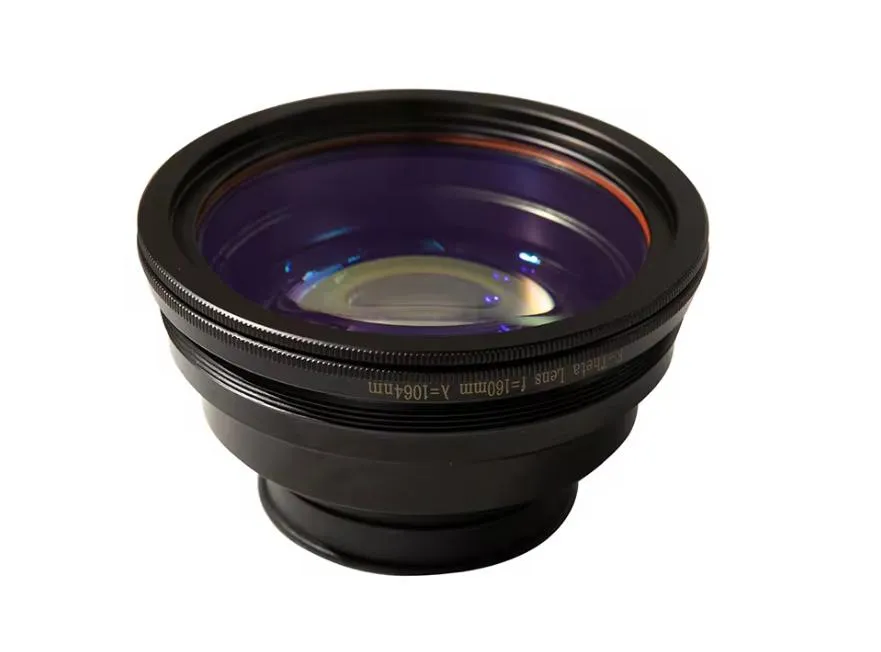

Field Lens
Standard options like 110*110mm, 175*175mm, and 200*200mm field lenses. A smaller field lens focus concentrates laser power for faster marking speeds on micro jobs.

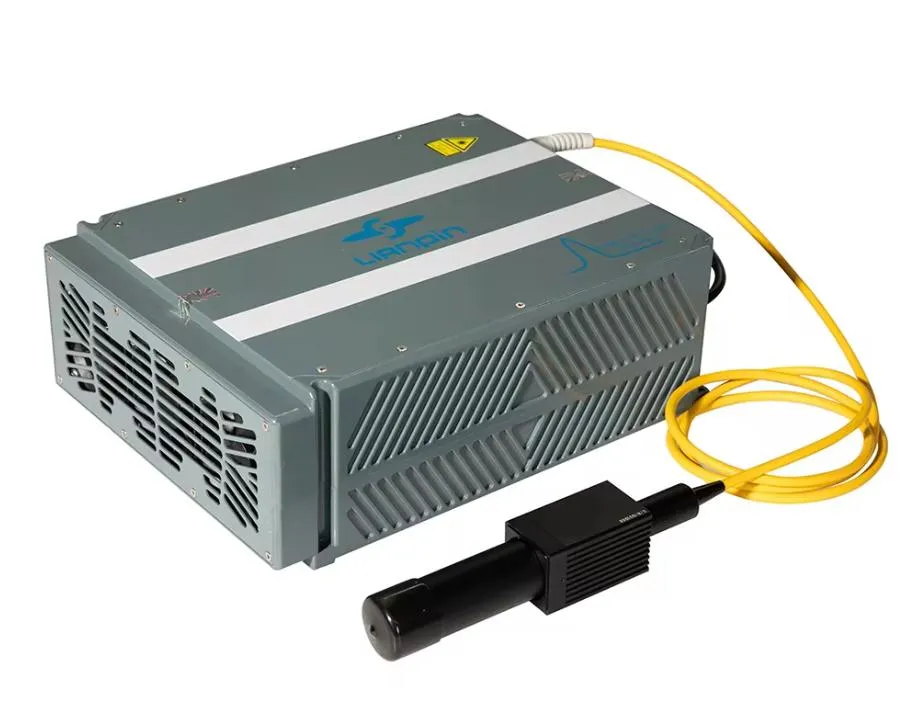

Laser Source
Configurable with multiple leading laser engines (Raycus / MAX / IPG / JPT). Higher power configurations ensure faster production throughput. CO2, UV, and MOPA configurations are also supported.
Optional Accessories & Configurable Tables

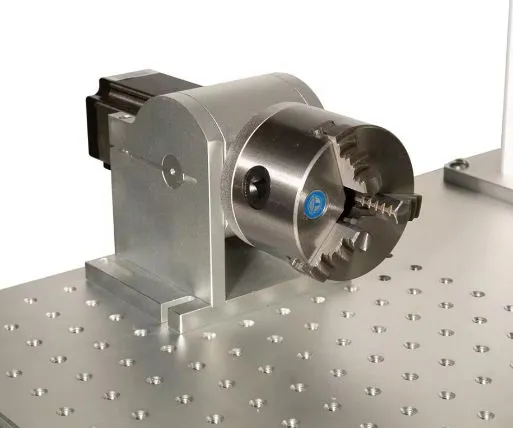

Rotary System
Available in 50mm, 80mm, 100mm, and 150mm diameters. Ideal for circular items, inside/outside ring engravings, pens, bulbs, and custom application accessories.
Modular Work Table
Equipped standard with an aluminum slot table for easy tool fixation. Optional upgrades include 2D/3D positioning tables, jewelry cutting boards, and custom platforms.
Machine Applications
Application Industries
Jewellery
Mobile Keyboards
Auto Parts
Electronic Components
Communication Apparatus
Sanitary Wares
Hardware Tools
Knives & Glasses
Clocks & Cookware
Stainless Steel Products
Application Materials
Gold & Silver
Copper & Alloy
Aluminum
Stainless Steel
Hard Plastics
Integrated Circuits
PVC Pipes
Medical Equipment
Packaging Bottles
Packaging & Safe Transport
Service & Performance Support
Pre-Sales Services
- Immediate response to inquiries regarding hardware, pricing, tech configuration, and solutions.
- Free material testing service using customer-sent samples.
Services in Sale
- Production tracking updates with detailed processing photos or videos sent every 7 days.
- Rigorous continuous testing of all parts for over 72 hours before dispatch.
- Multi-layer protective packaging for safe transit.
After-Sales Support
- Comprehensive operations manual and setup videos included.
- 7*18h online engineering support.
- Full 2-year warranty on the complete laser system with replacement parts supply.
Frequently Asked Questions (FAQ)
What materials can this fiber laser machine mark?
This system marks all metals (including gold, silver, copper, aluminum, steel, stainless steel, and alloys) as well as non-metal materials like engineered hard plastics, PVC pipes, and key components.
How long is the expected lifespan of this laser marking machine?
The high-quality fiber laser source is rated for up to 100,000 hours of operations. Featuring a fully sealed light path design, it is virtually maintenance-free.
What software programs are compatible with the control system?
The system supports popular graphic design and engineering software, including AutoCAD, CorelDraw, Photoshop, and Adobe Illustrator (AI), importing standard vector formats like DXF, PLT, and image files.
What after-sales service and warranty terms do you provide?
We offer a 2-year warranty on the complete machine. Additionally, you will receive operation manuals, guidance videos, and 7*18H support from our engineering team.
How is the equipment packaged and what is the delivery timeframe?
The machine is packed within a secure, robust plywood container (54cm * 28cm * 32cm, Gross Weight: 55kg) to avoid damage. Normal delivery is finished within 3-5 working days.
