Sapphire Watch Glass Optical Window Application

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO. FW-sapphire

Type Flat Lens

Transmittance >95%

Shape Single-lens

Material Optical Glass

Lenses Color Clear

Customized Customized

Size Customized

Thickness Customized

Growth Method Ky

Transport Package Box

Specification customized

Origin China

Production Capacity 60000 PCS/Month

Product Description

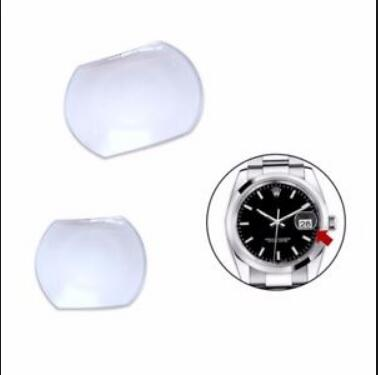

Sapphire watch glass optical window application

Sapphire is a hard crystal, it widely been used for watch and mobilephone, Beauty equipment, lasers, LED, and so on.

1. Why choose the sapphire?

Thinner and Stronger than Standard Glass Windows
Transmits Wavelengths Ranging From UV to Mid-Infrared
Features Extreme Surface Hardness and Chemical Resistance

2. What is sapphire windows

Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al₂O₃), and is useful in a transmission range from 0.2 - 5.5µm.

3. Product available

Sapphire Washers Sapphire Windows Sapphire Bearings Sapphire Rods Sapphire Tubes Ruby sapphire wafer Dome sapphire Sapphire insulation Film Sapphire ball lens Sapphire/ruby ball

Dimension size: 0.2-300mm or customization, thickness >0.1mm
Gemstone Type: Synthetic (lab created)
AR coating or as your request
Product shape: round, rectangle or custom shape
Chemical Composition: Al₂O₃

4. Materials characteristic

Property	Value
Refractive index (nd)	1.768
Coefficient of dispersion (Vd)	72.2
Density (g/cm3)	3.97
TCE(μm/mºC)	5.3
Soften Temperature(ºC)	2000
Knoop hardness(kg/mm2)	2200

5. Sapphire Windows and Sapphire lenses General Specifications

Parameter	Specifications
Diameter	0.2-300mm +/-0.1mm or +/-0.02mm or customization
Thickness	0.10-100mm± 0.1mm or +/-0.02mm
Surface quality (scratch & dig)	60/40, 40/20 or better
Surface accuracy	λ/10, λ/2, λ
Clear Aperture	>85%, >90%
Parallelism	+/-3' ,+/-30''
Bevel	0.1~0.3mm×45 degree
coating	AR, BBAR or upon customer request( UV, VIS, IR)

6. Products

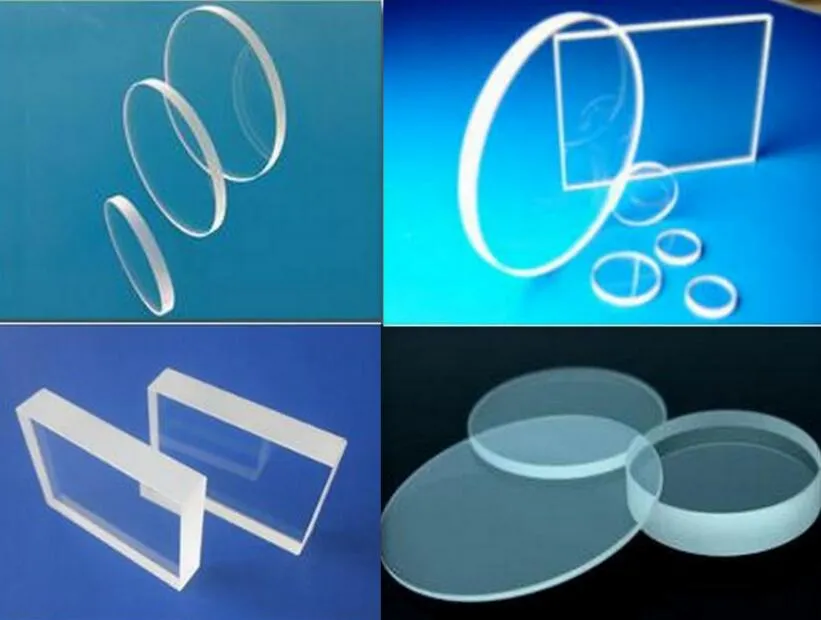

Sapphire Watch Glass Optical Window Application 1

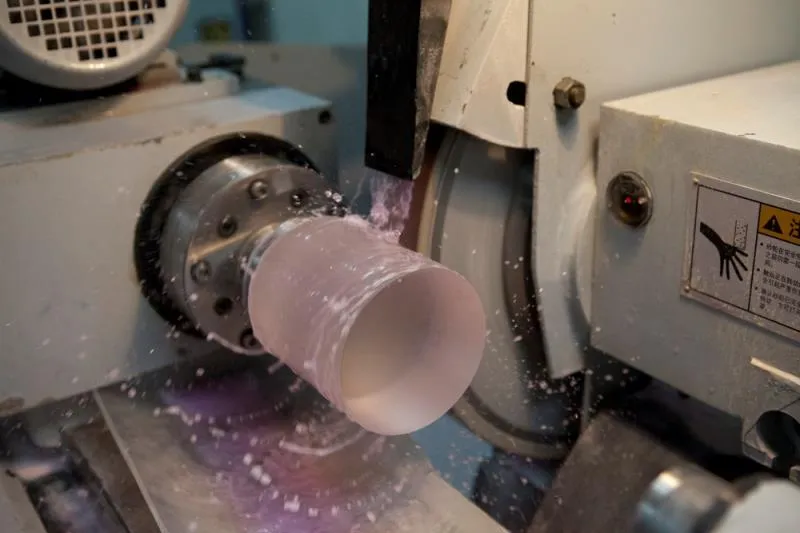

Sapphire Watch Glass Optical Window Application 2

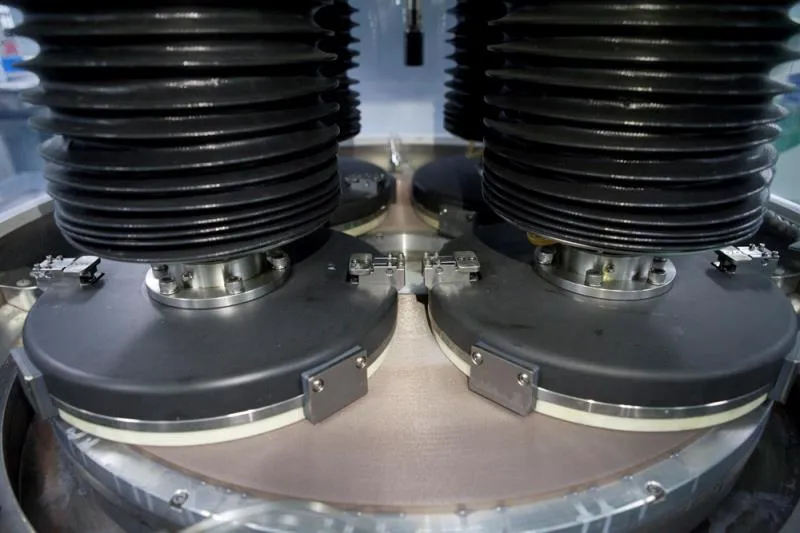

Sapphire Watch Glass Optical Window Application 3

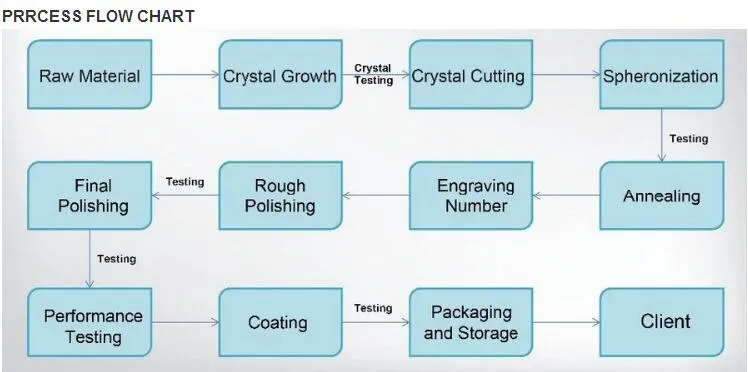

Sapphire Watch Glass Optical Window Application 4

Frequently Asked Questions

What's the way of shipping and cost?

We accept DHL, Fedex, TNT, UPS, EMS etc. If you have your own express account, it's great. If not, we could help you ship them.

How to pay?

We support payment methods including T/T, Paypal, and others as agreed.

What's your MOQ?

For inventory products, the MOQ is 5pcs. For customized products, the MOQ ranges from 10pcs to 25pcs.

What's the delivery time?

For standard inventory items, delivery is within 5 workdays. For customized standard products, delivery takes 2 to 3 weeks. For special-shaped products, delivery takes 4 to 6 workweeks after order placement.

Do you have standard products?

Yes, we maintain a selection of standard products in stock for immediate dispatch.

Can I customize the products based on my need?

Yes, we can customize the material, specifications, dimensions, and optical coating for your optical components based on your specific requirements.
